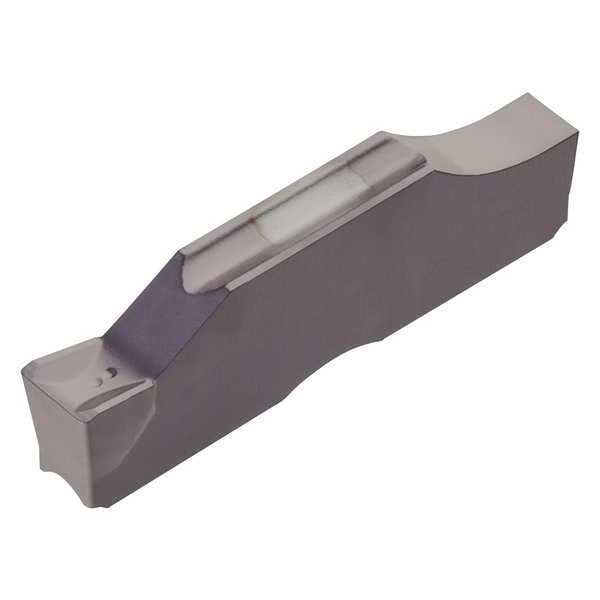

Tungaloy Cut Off Insert, PVD, Single Ended, Carbide 6860574 - main

Cut Off Insert, PVD, Single Ended, Carbide

  • Mfr # 6860574

  • Zoro # G0534025

product price: $19.95
/ea
Sold in multiples of 10 for $199.50

Key Features

Style
Single Ended
Insert Seat Size
3
Width
0.118 in
Depth
0.787 in
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6860574
Zoro #
G0534025
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Insert Seat Size
3
Width
0.118 in
Depth
0.787 in
Corner Radius
0.2000 in
Overall Length
20.00mm
Insert Size
3
Seat Size
3
Cutting Height
5.00mm
Reference Length
20.00mm
Max. Grooving Width
3.00mm

Details

Item
Parting and Grooving Insert
Style
Single Ended
Chip-Breaker
Yes
Grade
AH725
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
No. of Edges
1
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Insert Material
Carbide
Rake
Positive
Mounting Style
Clamp
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
Lead Angle
6 Degrees
Coating
PVD
For Use With
TungCut
ISO Number
SGM3-020-6R AH725
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Application
Metal Working
Insert Style
SGM
Hole Type
No Hole
Number of Cutting Edges
1
Cutting Location
External
Primary Material Application ISO Code
K, M, P
Coating Process
PVD
Number of Cutting Sides
1
ANSI Code
SGM3-020-6R AH725
Manufacturer Grade
AH725
Primary Material Application
Cast Iron, Stainless Steel, Steel
Material - Machining
Carbide
Cutting Application
Cut-Off, Grooving
Measurement System
Metric
Insert Holding Type
Clamp

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 3.00mm, ANSI Code SGM3-020-6R AH725, Coating Process PVD
