  6. Exchangeable Slotting and Slitting Cutter, TungMeister Series, 0.854" Max Cut Dia, Carbide
Tungaloy Exchangeable Slotting and Slitting Cutter, TungMeister Series, 0.854" Max Cut Dia, Carbide 6859487 - main

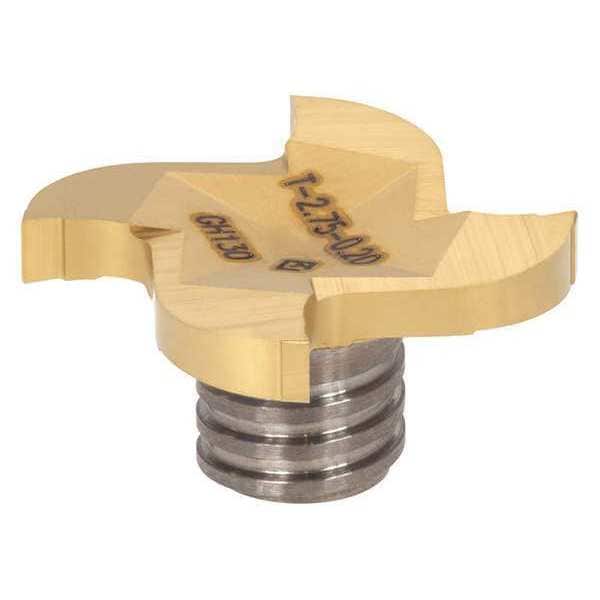

Exchangeable Slotting and Slitting Cutter, TungMeister Series, 0.854" Max Cut Dia, Carbide

  • Mfr # 6859487

  • Zoro # G0177199

product price:  $55.89
/ea
Sold in multiples of 2 for $111.78

Key Features

Series
TungMeister
Cutting Dia.
0.854"
Overall Length
0.854"
Number of Inserts Required
1
Depth of Cut
0.217 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6859487
Zoro #
G0177199
UPC #
-
Country of Origin
Israel

Dimensions

Cutting Dia.
0.854"
Overall Length
0.854"
Depth of Cut
0.217 in
Insert Size
21.70mm
Coupling Size
S08
Shank Dia.
0.500"
Cutter Dia.
21.70mm
Length of Cut
1.70mm
Head Dia.
0.854 in
Chamfer Width
1.50mm
Connection Size
S06
Cutting Width
5.50mm

Details

Item
Exchangeable Slotting and Slitting Cutter
Series
TungMeister
Number of Inserts Required
1
Material - Machining
Carbide
ANSI Number
VST217L01.70A45-4S08GH130
Cutting Angle
45 Degrees
Key
KEYV-217
Pitch
Coarse
Shank Shape
Straight
Cutting Direction
Right Hand
Finish - Machining
TiCNO
Compatible Hardware
Wrench KEYV-217
Secondary Material Application
K05 - K30, M15 - M30, P15 - P30
Primary Material Application ISO Code
K, M, P
Manufacturer Grade
GH130
Cutting Application
Chamfering on Slots
ISO Number
VST217L01.70A45-4S08
Coolant Fed
Non-Coolant Through
Coating Process
PVD
Side Cutting Edge Angle
45 Degrees
Included Angle
90 Degrees
Primary Material Application
Cast Iron, Stainless Steel, Steel
Measurement System
Metric
Number of Flutes
4
Helix Angle
0 Degrees
Insert Shape
Round

Description

Exchangeable Slotting and Slitting Cutter, Cutter Dia. 21.70mm, Carbide, TiCNO
