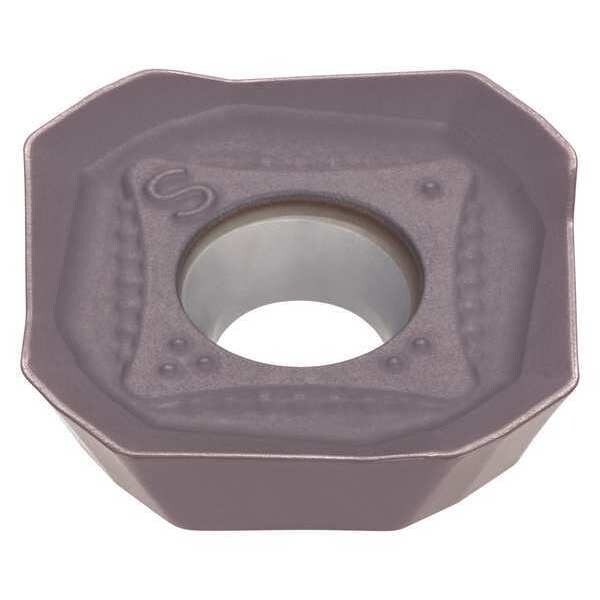

Tungaloy Milling Insert, AH140 Grade, 0.157in.Thick 6846118 - main

Milling Insert, AH140 Grade, 0.157in.Thick

  • Mfr # 6846118

  • Zoro # G1925345

product price: $15.49
/ea
Sold in multiples of 10 for $154.90

Key Features

No. of Edges
4
Cutting Direction
Neutral
Grade
AH140
Coating
PVD
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6846118
Zoro #
G1925345
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
13T3AF
Insert Thickness
0.157"
Nose Radius
Chamfer
Mounting Hole Dia.
0.173 in
Corner Radius
1.00mm
Thickness
0.157 in
Depth of Cut
4.00mm

Details

No. of Edges
4
Cutting Direction
Neutral
Grade
AH140
Coating
PVD
Chip-Breaker
Yes
Super Alloy (S) Compatibility
Yes
Mounting Style
Screw-On
Steel (P) Compatibility
Yes
Rake
Positive
Insert Application
Medium
Stainless (M) Compatibility
Yes
Insert Material
Carbide
Cast Iron (K) Compatibility
No
For Use With
30 Degrees to 45 Degrees End Mills
Item
Square Milling Insert
Insert Shape
Square
Hardened (H) Compatibility
No
Inscribed Circle
0.547 in
Insert Style
SWMT
Lead Angle
45 Degrees
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
ISO Number
SWMT13T3AFPR-MS AH140
Wiper Insert
Yes
Chip-Breaker Code
MS
Features
High Fracture Resistance
Secondary Material Application ISO Code
M
Finish - Machining
TiAl
Included Angle
90 Degrees
Measurement System
Metric
Primary Material Application ISO Code
M
Shape
Square
Manufacturer Grade
AH140
Hole Type
Countersink Hole
Secondary Material Application
Stainless Steel
Number of Cutting Edges
4
Coating Process
PVD
Insert Holding Type
Screw-On
Primary Material Application
Stainless Steel
For Toolholder
TAW13R200U0075A03, TAW13R200U0075A04, TAW13R200U0075A05, TAW13R300U0100A04, TAW13R300U0100A06, TAW13R300U0100A08, TAW13R400U0150A05, TAW13R400U0150A07, TAW13R400U0150A10, TAW13R500U0150A06, TAW13R500U0150A08, TAW13R500U0150A12, TAW13R600U0200A07, TAW13R600U0200A10, TAW13R600U0200A16
Material - Machining
Carbide

Description

Square Milling Insert, Inscribed Circle 0.547 in, Rake Positive
