Tungaloy

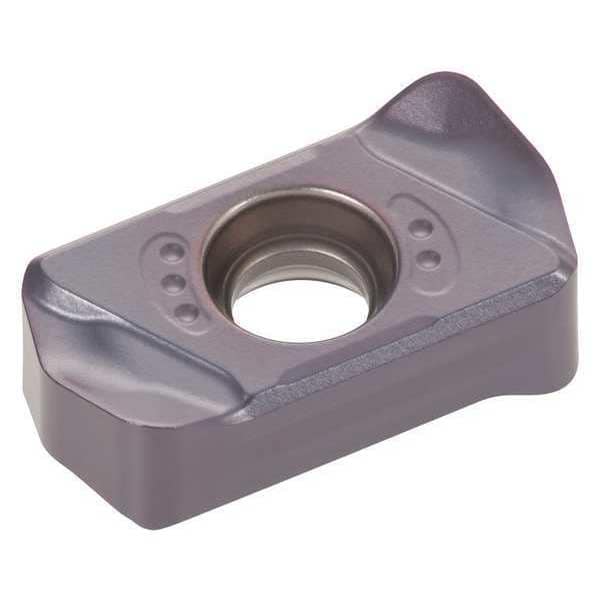

Milling Insert, AH725 Grade, PVD Coating

product price: $16.59
/ea
Sold in multiples of 10 for $165.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Insert Style LNMU
  • Lead Angle 15 Degrees
  • Chip-Breaker Yes
  • Mounting Hole Dia. 0.114 in
  • Cutting Direction Neutral
See all product information

Product Information

Dimensions

Mounting Hole Dia. 0.114 in
Nose Radius 0.047"
Insert Size 0303
Corner Radius 1.20mm
Depth of Cut 0.0390 in
Cutting Edge Length 3.20mm
Width 6.00mm

Details

Insert Style LNMU
Lead Angle 15 Degrees
Item Milling Insert
Chip-Breaker Yes
Cutting Direction Neutral
Grade AH725
Inscribed Circle 0.236 in
Insert Application Medium
Non Ferrous (N) Compatibility No
Cast Iron (K) Compatibility Yes
Workpiece Compatibility Cast Iron (K), Steel (P), Super Alloy (S)
Insert Material Carbide
For Use With Feed Milling Endmills
Steel (P) Compatibility Yes
Insert Thickness 0.169"
Rake Positive
Hardened (H) Compatibility No
Insert Shape Rectangle
Super Alloy (S) Compatibility Yes
Coating PVD
Mounting Style Screw-On
Stainless (M) Compatibility No
No. of Edges 4
Clearance Angle 0 Degrees
Insert Holding Type Screw-On
Primary Material Application ISO Code K
Thickness 0.169 in
Number of Cutting Edges 4
Manufacturer Grade AH725
Hole Type 40 Degrees to 60 Degrees Double Countersink Hole
Secondary Material Application ISO Code H, P, S
Primary Material Application Cast Iron
Coating Process PVD
Material - Machining Carbide
ANSI Code LNMU0303ZER-MJ AH725
Secondary Material Application Hardened Steel, Nickel, Steel, Titanium
Measurement System Metric
Shape Rectangle
For Toolholder HXN03R016MM08-02, HXN03R018MM08-02, HXN03R020MM10-03, HXN03R020MM10-04, HXN03R022MM10-03, HXN03R022MM10-04, HXN03R025MM12-04, HXN03R025MM12-05, HXN03R028MM12-04, HXN03R028MM12-05, HXN03R030MM16-04, HXN03R030MM16-05, HXN03R032MM16-05, HXN03R032MM16-06
Chip-Breaker Code MJ

Description

Milling Insert, Inscribed Circle 0.236 in, Rake Positive
