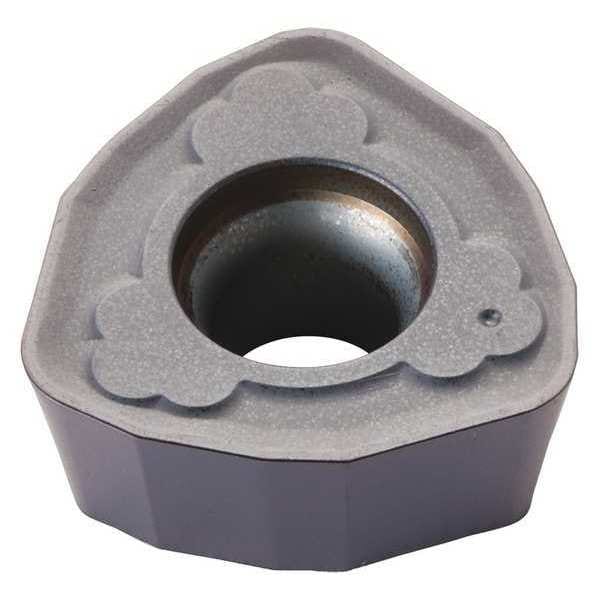

Tungaloy Milling Insert, PVD Coating, 0.250in.Thick 6821768 - main

Milling Insert, PVD Coating, 0.250in.Thick

  • Mfr # 6821768

  • Zoro # G0534068

product price: $16.99
/ea
Sold in multiples of 10 for $169.90

Key Features

Lead Angle
10 Degrees
Mounting Style
Screw-On
Workpiece Compatibility
Cast Iron (K), Steel (P), Super Alloy (S)
Insert Application
Medium
Rake
Positive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6821768
Zoro #
G0534068
UPC #
-
Country of Origin
Japan

Dimensions

Mounting Hole Dia.
0.217 in
Nose Radius
0.059"
Insert Size
80615
Insert Thickness
0.250"
Width
0.5070 in
Cutting Edge Length
8.00mm
Thickness
0.250 in
Depth of Cut
1.50mm
Corner Radius
1.50mm

Details

Lead Angle
10 Degrees
Mounting Style
Screw-On
Workpiece Compatibility
Cast Iron (K), Steel (P), Super Alloy (S)
Insert Application
Medium
Rake
Positive
Inscribed Circle
0.508 in
For Use With
High-Feed Milling
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Item
Trigon Milling Insert
No. of Edges
3
Coating
PVD
Insert Material
Carbide
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Chip-Breaker
Yes
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
Yes
Hardened (H) Compatibility
No
Insert Style
WPMT
Grade
AH120
Insert Shape
Trigon
ISO Number
WPMT080615ZPR-ML AH120
Primary Material Application ISO Code
K, P, S
Clearance Angle
11 Degrees
Chip-Breaker Style
On One Side
Shape
Trigon
Number of Cutting Edges
3
Material - Machining
Carbide
For Toolholder
EXP05075RLU, EXP05075RSU, EXP09200RLU, EXP09200RU
Insert Holding Type
Screw-On
Included Angle
80 Degrees
Manufacturer Grade
AH120
Finish - Machining
TiAl
Primary Material Application
Cast Iron, Nickel, Steel, Titanium
Cutting Application
Medium Cutting
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Chip-Breaker Code
ML
Measurement System
Metric
Coating Process
PVD

Description

Trigon Milling Insert, Inscribed Circle 0.508 in, Rake Positive
