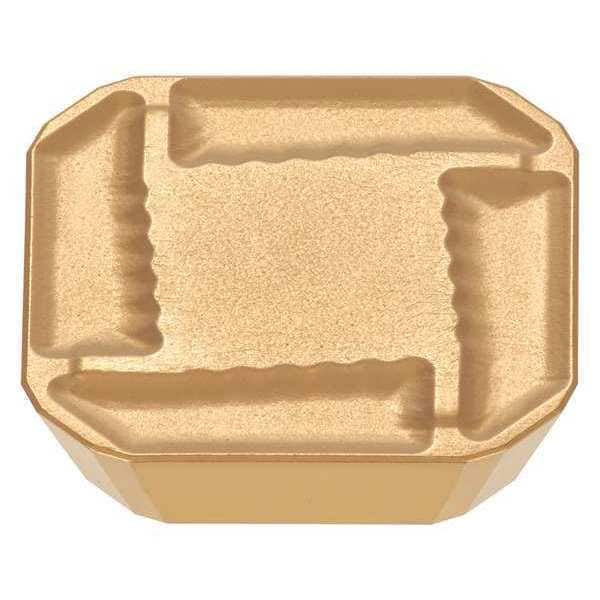

Tungaloy Milling Insert, T3130 Grade, 0.125in.Thick 6853846 - main

Milling Insert, T3130 Grade, 0.125in.Thick

  • Mfr # 6853846

  • Zoro # G1925388

product price: $16.59
/ea
Sold in multiples of 10 for $165.90

Key Features

Hardened (H) Compatibility
No
Insert Material
Carbide
Chip-Breaker
Yes
Insert Size
42
For Use With
TungMill TME44
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6853846
Zoro #
G1925388
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
42
Insert Thickness
0.125"
Nose Radius
Chamfer
Thickness
0.125 in
Depth of Cut
4.00mm
Cutting Edge Length
12.70mm

Details

Hardened (H) Compatibility
No
Insert Material
Carbide
Chip-Breaker
Yes
For Use With
TungMill TME44
Workpiece Compatibility
Cast Iron (K), Steel (P)
Cast Iron (K) Compatibility
Yes
Grade
T3130
Cutting Direction
Right Hand
No. of Edges
4
Insert Shape
Square
Insert Application
Medium
Coating
CVD
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Insert Style
SEKR
Rake
Positive
Inscribed Circle
1/2 in
Mounting Style
Wedge Clamp
Lead Angle
45 Degrees
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
Item
Square Milling Insert
Features
Balance Between Wear and Chipping Resistance
Shape
Square
Coating Process
CVD
Material - Machining
Carbide
Primary Material Application
Stainless Steel, Steel
Number of Cutting Edges
4
Primary Material Application ISO Code
M, P
Chip-Breaker Code
MJ
Hole Type
No Hole
ANSI Code
SEKR42AFSR-MJ T3130
For Toolholder
EGE4400, TGE4400I
Manufacturer Grade
T3130
Insert Holding Type
Wedge Clamp
Included Angle
90 Degrees
Finish - Machining
TiCN+Al2O3
Measurement System
Fractional Inch
Wiper Insert
Yes

Description

Square Milling Insert, Inscribed Circle 1/2 in, Rake Positive
