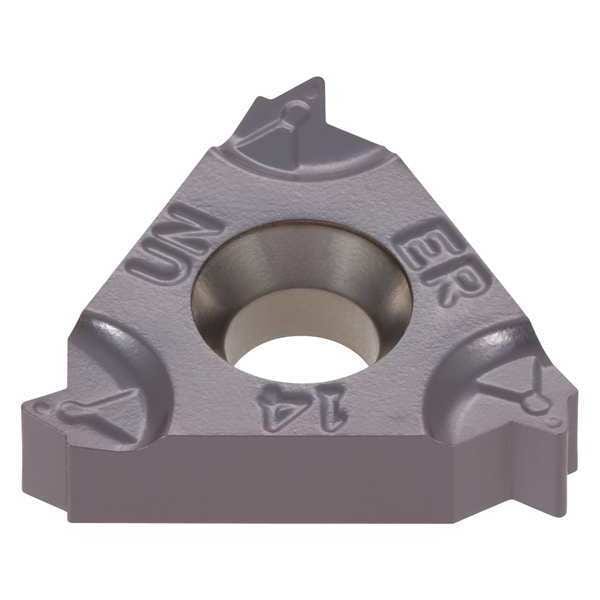

Tungaloy Threading Insert, Carbide, Laydown 5901568 - main

Threading Insert, Carbide, Laydown

  • Mfr # 5901568

  • Zoro # G0176937

product price: $22.89
/ea

Key Features

Thread Type
External
Style
Laydown
Insert Size
16
Pitch
0.063"
Thread Profile
Unified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5901568
Zoro #
G0176937
UPC #
-
Country of Origin
Israel

Dimensions

Insert Size
16
Thread Height Difference
0.0350 in
Corner Radius
0.0071 in

Details

Item
Threading Insert
Thread Type
External
Style
Laydown
Pitch
0.063"
Thread Profile
Unified
Chip-Breaker
Yes
Grade
AH725
Cutting Direction
Right Hand
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Non Ferrous (N) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Insert Shape
Triangle
Insert Material
Carbide
Inscribed Circle
3/8 in
Super Alloy (S) Compatibility
Yes
Stainless (M) Compatibility
Yes
No. of Edges
3
Coating
PVD
Mounting Style
Screw
ISO Number
16ER16UN-B
Insert Type
16ER
Measurement System
Fractional Inch
Finish - Machining
TiAlN
Insert Holding Type
3/8 in
Cutting Application
Threading
Primary Material Application ISO Code
K, M, P, S
Included Angle
60 Degrees
Side-to-Cutting Tip
0.0430 in
Max. Thread Pitch
16
Thread Profile Type
Full
ANSI Code
16ER16UN-B
Coating Process
PVD
Material - Machining
Carbide
Manufacturer Grade
AH725
Insert Style
16ER
Thread Standard
UN
Chip-Breaker Style
Pressed
Threading Location
External
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Number of Cutting Edges
3

Description

Threading Insert, 16ER, External, Cutting Direction Right Hand, UN, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium, Inscribed Circle 3/8 in
