  11. Cable Tie, 4 in L, 5/8 in Max Bundle Dia., Natural, Nylon 6/6, 18 lb Strength, 1000 PK

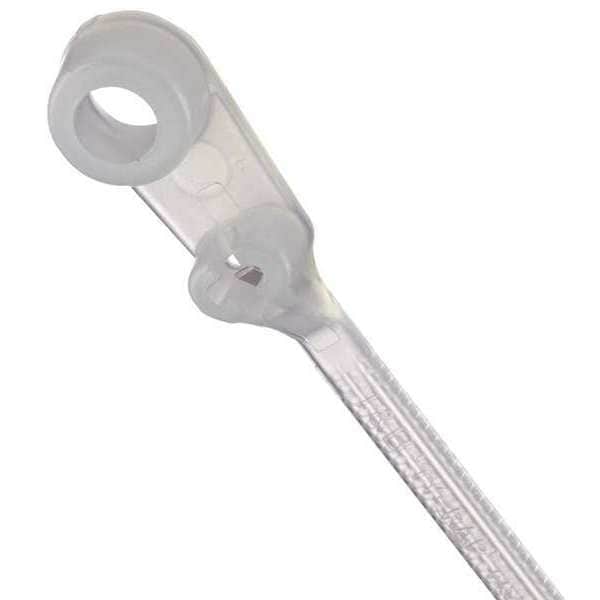

Ty-Rap Cable Tie, 4 in L, 5/8 in Max Bundle Dia., Natural, Nylon 6/6, 18 lb Strength, 1000 PK TY33M - main

Cable Tie, 4 in L, 5/8 in Max Bundle Dia., Natural, Nylon 6/6, 18 lb Strength, 1000 PK

  • Mfr # TY33M

  • Zoro # G2415567

product price: $227.99
/pk 1000, $0.23/ea
Free Shipping & Returns

Key Features

Cable Tie Style
Halogen-Free, Mountable, Plenum Rated
Nominal Length
4 in
Width
3/32 in
Nominal Max. Bundle Dia.
5/8 in
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TY33M
Zoro #
G2415567
UPC #
786210824857
Country of Origin
United States

Dimensions

Nominal Length
4 in
Width
3/32 in
Nominal Max. Bundle Dia.
5/8 in
Mounting Hole Size - Cable Tie
#4
Thickness
0.03"
Mounting Hole Size
#4
Screw Mount Hole Size
#4
Actual Length
4 in
Max. Bundle Dia.
0.63 in

Details

Item
Cable Tie
Cable Tie Style
Halogen-Free, Mountable, Plenum Rated
Color
Natural
Material
Nylon 6/6
Tensile Strength
18 lb
Outdoor Use
No
Tool Code
A
UL Type
21
Metal Detectable
No
Standards
UL Listed
Locking Style
Stainless Steel Barb
Mounting Style
Mounting Head
Features
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
Operating Temp. Range
-40 to 185 °F
Mounting Method
Screw Mount
Min. Temp. Rating
-40 Degrees F
Plenum Rated
Yes
Number of Straps
1
Cable Tie Properties
Halogen-Free, Weather Resistant
Max. Temp. Rating
185 Degrees F
Band closure
Steel nose
Min. holding force
80 N
Text strip
None
Surface protection
Untreated
Model
Internal toothing
Type of fastening
Screw hole
Basic Material - Cable Tie
Nylon
Cable Tie Duty
Miniature
Flame Retardant
No
Temp. Range
-40 Degrees to 185 Degrees F

Description

Cable Tie, Mountable, Actual Length 4 in, Width 0.09 in, Nominal Length 4 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 18 lb, Halogen-Free, Weather Resistant, Miniature, Mounting Method Screw Mount, Nominal Max. Bundle Dia. 5/8 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, Screw Mount Hole Size #4, UL Type 21, Thickness 0.04 in
