  11. Cable Tie, 6 in L, 1-1/8 in Max Bundle Dia., Natural, Nylon 6/6, 40 lb Strength, 100 PK

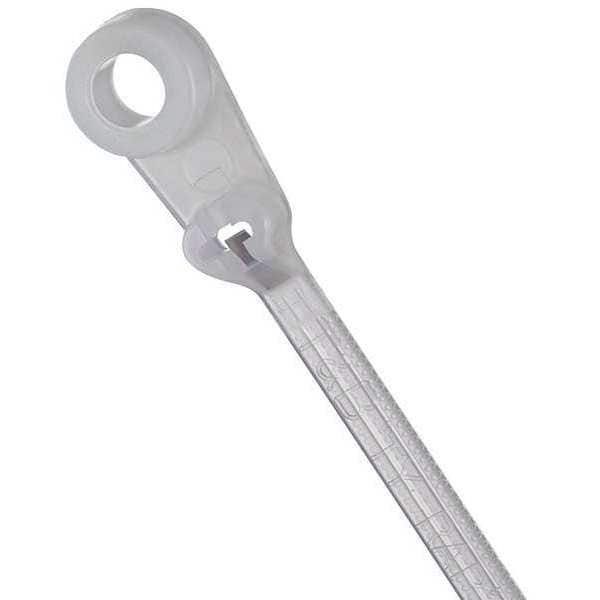

Ty-Rap Cable Tie, 6 in L, 1-1/8 in Max Bundle Dia., Natural, Nylon 6/6, 40 lb Strength, 100 PK TY534M - main

Cable Tie, 6 in L, 1-1/8 in Max Bundle Dia., Natural, Nylon 6/6, 40 lb Strength, 100 PK

  • Mfr # TY534M

  • Zoro # G0951316

product price: $53.76
/pk 100, $0.54/ea

Key Features

Cable Tie Style
Halogen-Free, Mountable, Plenum Rated
Nominal Length
6 in
Width
0.14 in
Nominal Max. Bundle Dia.
1-1/8 in
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TY534M
Zoro #
G0951316
UPC #
-
Country of Origin
United States

Dimensions

Nominal Length
6 in
Width
0.14 in
Nominal Max. Bundle Dia.
1-1/8 in
Thickness
0.04"
Mounting Hole Size
#8
Mounting Hole Size - Cable Tie
#8
Screw Mount Hole Size
#8
Actual Length
5.9 in
Max. Bundle Dia.
1.14 in

Details

Item
Cable Tie
Cable Tie Style
Halogen-Free, Mountable, Plenum Rated
Color
Natural
Material
Nylon 6/6
Tensile Strength
40 lb
Outdoor Use
No
UL Type
21
Tool Code
A
Metal Detectable
No
Locking Style
Stainless Steel Barb
Mounting Style
Mounting Head
Standards
UL Listed
Features
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
Operating Temp. Range
-40 to 185 °F
Mounting Method
Screw Mount
Plenum Rated
Yes
Max. Temp. Rating
185 Degrees F
Min. Temp. Rating
-76 Degrees F
Cable Tie Properties
Halogen-Free, Plenum Rated
Number of Straps
1
Band closure
Steel nose
Min. holding force
177 N
Text strip
None
Type of fastening
Screw hole
Model
Internal toothing
Surface protection
Untreated
Basic Material - Cable Tie
Nylon
Flame Retardant
No
Cable Tie Duty
Intermediate
Temp. Range
-40 Degrees to 185 Degrees F

Description

Cable Tie, Mountable, Actual Length 5.9 in, Width 0.14 in, Nominal Length 6 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 40 lb, Halogen-Free, Plenum Rated, Intermediate, Mounting Method Screw Mount, Nominal Max. Bundle Dia. 1 1/8 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, Screw Mount Hole Size #8, UL Type 21, Thickness 0.05 in
