  11. Cable Tie, 8 in L, 1-3/4 in Max Bundle Dia., Black, Nylon 6/6, 50 lb Strength, 1000 PK

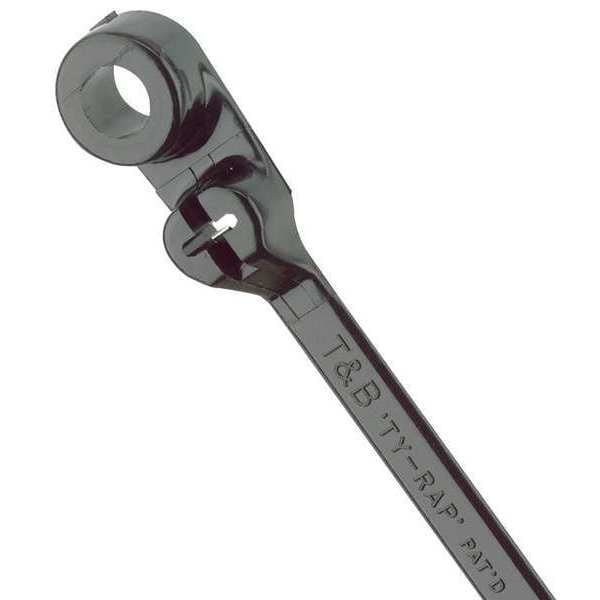

Ty-Rap Cable Tie, 8 in L, 1-3/4 in Max Bundle Dia., Black, Nylon 6/6, 50 lb Strength, 1000 PK TY35MX - main

Cable Tie, 8 in L, 1-3/4 in Max Bundle Dia., Black, Nylon 6/6, 50 lb Strength, 1000 PK

  • Mfr # TY35MX

  • Zoro # G2329731

product price: $203.99
/pk 1000, $0.20/ea
Free Shipping & Returns

Key Features

Cable Tie Style
Halogen-Free, Mountable, Plenum Rated, UV Resistant
Nominal Length
8 in
Width
3/16 in
Nominal Max. Bundle Dia.
1-3/4 in
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TY35MX
Zoro #
G2329731
UPC #
786210824925
Country of Origin
United States

Dimensions

Nominal Length
8 in
Width
3/16 in
Nominal Max. Bundle Dia.
1-3/4 in
Thickness
0.04"
Mounting Hole Size - Cable Tie
#10
Mounting Hole Size
#10
Actual Length
7.83 in
Screw Mount Hole Size
#10
Max. Bundle Dia.
1.77 in

Details

Item
Cable Tie
Cable Tie Style
Halogen-Free, Mountable, Plenum Rated, UV Resistant
Color
Black
Material
Nylon 6/6
Tensile Strength
50 lb
Outdoor Use
Yes
Metal Detectable
No
Locking Style
Stainless Steel Barb
Tool Code
A/B
Mounting Style
Mounting Head
UL Type
21S
Features
Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.; Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.; The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.; Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
Standards
UL Listed
Operating Temp. Range
-40 to 221 °F
Mounting Method
Screw Mount
Cable Tie Properties
Halogen-Free, UV Light Resistant, Weather Resistant
Plenum Rated
Yes
Number of Straps
1
Max. Temp. Rating
220 Degrees F
Min. Temp. Rating
-40 Degrees F
Model
Internal toothing
Type of fastening
Screw hole
Text strip
None
Min. holding force
222 N
Surface protection
Untreated
Band closure
Steel nose
Basic Material - Cable Tie
Nylon
Flame Retardant
No
Cable Tie Duty
Standard
Temp. Range
-40 Degrees to 185 Degrees F

Description

Cable Tie, Mountable, Actual Length 7.83 in, Width 0.19 in, Nominal Length 8 in, Locking Style Stainless Steel Barb, Color Black, Basic Material - Cable Tie Nylon, Tensile Strength 50 lb, Halogen-Free, UV Light Resistant, Weather Resistant, Standard, Mounting Method Screw Mount, Nominal Max. Bundle Dia. 1 3/4 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use Yes, Plenum Rated Yes, Screw Mount Hole Size #10, UL Type 21S
