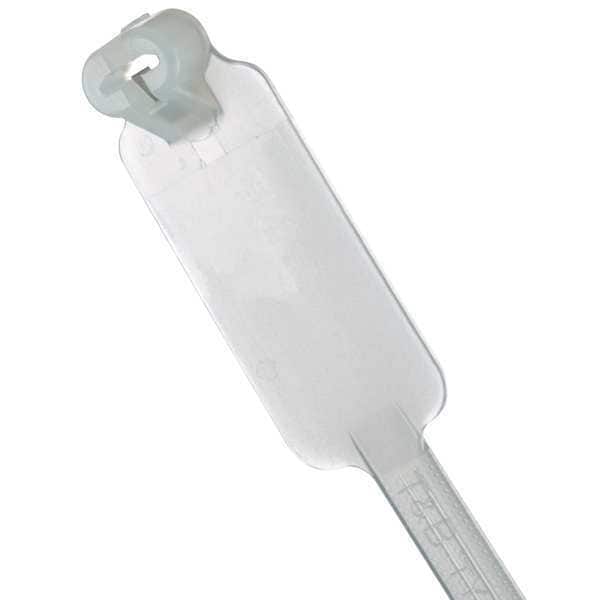

Marker Cable Tie, 7.25 in L, 1-3/4 in Max Bundle Dia., Natural, Nylon 6/6, 50 lb Strength, 100 PK

  • Mfr # TY546M

  • Zoro # G3353086


product price: $53.29
/pk 100, $0.53/ea

Key Features

Cable Tie Style
Halogen-Free, Plenum Rated, With ID Tag
Nominal Length
7-1/2 in
Width
3/16 in
Nominal Max. Bundle Dia.
1-3/4 in
Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TY546M
Zoro #
G3353086
UPC #
-
Country of Origin
United States

Dimensions

Nominal Length
7-1/2 in
Width
3/16 in
Nominal Max. Bundle Dia.
1-3/4 in
Thickness
0.05 in
Marking Pad Size
1 1/16 in x 1/2 in
Actual Length
7.25 in
Max. Bundle Dia.
1.77 in

Details

Item
Cable Tie
Cable Tie Style
Halogen-Free, Plenum Rated, With ID Tag
Color
Natural
Material
Nylon 6/6
Tensile Strength
50 lb
Outdoor Use
No
UL Type
21S
Marking Pad Direction
Parallel to Tie
Tool Code
A/B
Locking Style
Stainless Steel Barb
Metal Detectable
No
Standards
AH-2 Plenum, CSA 62275 Type 2, 21S, EN 62275, UL 62275
Operating Temp. Range
-76 to 185 °F
Marking Pad Orientation
Parallel to Tie
Number of Straps
1
Max. Temp. Rating
185 Degrees F
Cable Tie Properties
Halogen-Free, Plenum Rated
Plenum Rated
Yes
Min. Temp. Rating
-76 Degrees F
Band closure
Steel nose
Min. holding force
220 N
MIL approval
Yes
Surface protection
Untreated
UL approval
Yes
Text strip
Adjacent to bundle
Model
Internal toothing
Flame Retardant
No
Cable Tie Duty
Standard
Temp. Range
-40 Degrees to 185 Degrees F
Basic Material - Cable Tie
Nylon

Description

Cable Tie, With ID Tag, Actual Length 7.25 in, Width 0.19 in, Nominal Length 7 1/2 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 50 lb, Halogen-Free, Plenum Rated, Standard, Nominal Max. Bundle Dia. 1 3/4 in, Marking Pad Orientation Parallel to Tie, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, UL Type 21S, Thickness 0.05 in
