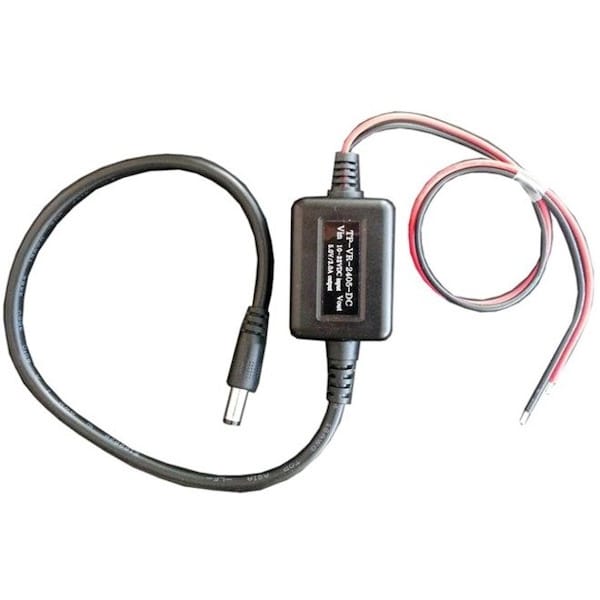

DC to DC Converter, 12/24V DC to 5V DC, 15VA, 0 Hz
Mfr # TP-VR-2405
Zoro # G4582587
product price:Â
$
29.39
/ea
Key Features
Converts
12/24V DC to 5V DC
VA Rating
15VA
Frequency
0 Hz
Height
2-3/4 in
Width
1-1/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TP-VR-2405
- Zoro #
- G4582587
- UPC #
- 810017122400
- Country of Origin
- Taiwan, Province of China
Dimensions
- Height
- 2-3/4 in
- Width
- 1-1/4 in
- Depth
- 1 in
- Lead Wire Length
- 12"
Details
- Item
- DC to DC Converter
- Converts
- 12/24V DC to 5V DC
- VA Rating
- 15VA
- Frequency
- 0 Hz
- Maximum Output Current
- 3 A
- Output voltage
- 5 V DC
- Device Supported
- Remote Power System, Wireless Base Station, Security Device
- Environmentally Friendly
- Yes
- Weight (Approximate)
- 1.92 oz
- Product Series
- TP-VR
- Maximum Output Power
- 15 W
- Efficiency
- 0.8
- DC Voltage Output
- 5VDC @ 3A
- Wire Gauge
- 18AWG
- Operating temperature
- - 40°F to 149°F ( - 40°C to +65°C)
- Load / Line Regulation
- 5% / 1%
- DC Input Voltage Range
- 10V to 32VDC
- Operating Humidity
- 0 to 99% RH
- Ripple / Noise
- 2% / 5%
- Maximum Power Dissipation
- 15W
Description
Voltage Regulator 10-32VDC input, 5V @ 3A regulated output. 15W. 12" 18AWG lead wires
