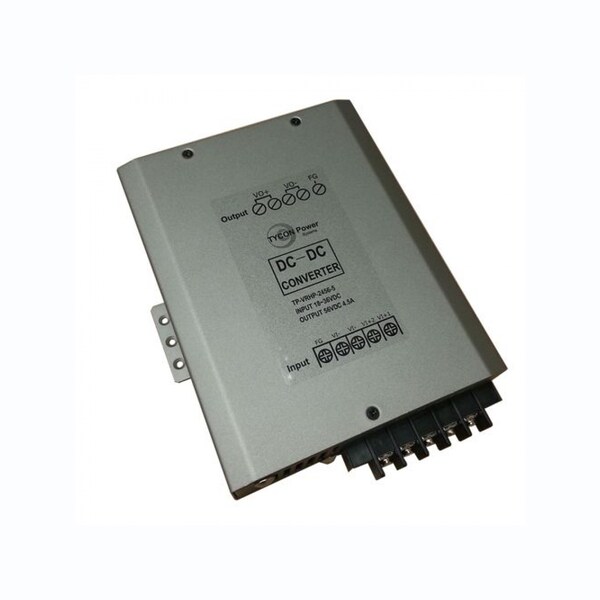

DC to DC Converter, 18-36V DC to 56V DC, 250VA, 0 Hz, DIN Rail, Metal
- Mfr # TP-VRHP-2456-250
- Zoro # G4581047
product price:Â
$
414.99
/ea
Free Shipping & Returns
Key Features
Converts
18V DC, 36V DC, 56V DC
Enclosure Material
Metal
Mounting
DIN Rail
Frequency
0 Hz
Height
5.9 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- TP-VRHP-2456-250
- Zoro #
- G4581047
- UPC #
- 810017122486
- Country of Origin
- Taiwan, Province of China
Dimensions
- Height
- 5.9 in
- Width
- 7.4 in
- Depth
- 1.7 in
Details
- Item
- DC to DC Converter
- Converts
- 18V DC, 36V DC, 56V DC
- VA Rating
- 250VA
- Enclosure Material
- Metal
- Mounting
- DIN Rail
- Frequency
- 0 Hz
- DC Voltage Output
- 56VDC @ 4.46A
- Operating Humidity
- 0 to 90% RH
- Ripple/ Noise
- 2% / 5%
- Isolation
- 1500VDC Min. / 100M Ohms Min
- Protections
- Short Circuit, Overvoltage, Overload
- Wire Gauge
- 12AWG Max
- Maximum Power
- 250W
- Efficiency
- >83%
- Operating Temp
- -22°F to 149°F (-30°C to +65°C)
- DC Input Voltage Range
- +/- 18 to 36VDC
- Load/ Line Reg
- 5% / 1%
- Input/ Output Isolation
- Isolated
Description
Voltage Converter 18-36VDC Input, 56VDC @ 4.46A 250W Regulated output.isolated
