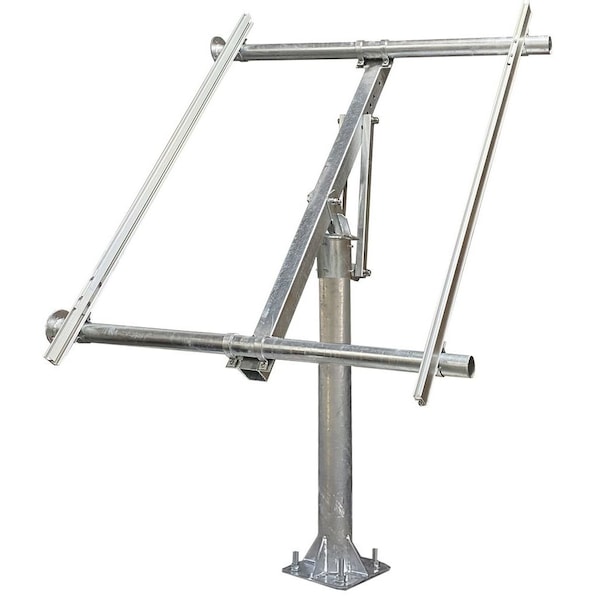

Solar Mt, 2X 350W Panels, Top Of Pole, TPSM-350x2-TP
Mfr # TPSM-350x2-TP
Zoro # G400717024
product price: $1,569.99
/ea
Free Shipping & Returns
Key Features
Min array height (front of array at 65deg)
1143mm (45")
Tilt
10 - 65 degrees
Array Dimensions
Width: 3367mm (132.5") Height: 2017mm (79.4")
Structural cross tube total length
2 module: 1499mm (59")
Mounting method
anchor bolts in concrete footing (Anchors included, concrete provided by installer)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TPSM-350x2-TP
Zoro #
G400717024
UPC #
810017123490
Country of Origin
China
Dimensions
Min array height (front of array at 65deg)
1143mm (45")
Array Dimensions
Width: 3367mm (132.5") Height: 2017mm (79.4")
Structural cross tube total length
2 module: 1499mm (59")
Total module rail length
2083mm (82")
Crate Outside Dimensions
2007 x 540 x 483mm (79 x 21.25 x 19")
Pole Diameter
140mm (6")
Max array height (back of array at 65deg)
3048mm (120")
Pole height
1829mm (72")
Panel Thickness
30-50MM
Details
Item
Solar Panel Pole
Tilt
10 - 65 degrees
Mounting method
anchor bolts in concrete footing (Anchors included, concrete provided by installer)
International Compliant Standards
GB50009-2001; GB50011-2001; GB/T 13912-92; GBT 14846-2008; GB-T 6892-2006; GB50429-2007; GB50017-2003; AS NZS 1170; ASCE/SEI 7-05; ASCE/SEI 7-010; 2007 California Administrative Code; IBC 2006; Euro Code 8; DIN1055; EN 1991-1-3 - Snow Load; EN 1991-1-4 - Wind Actions
Max wind speed
100mph
Description
Complete Top of Pole mount for two 250-360W solar panels.Includes flange base pole and concrete anchors.Easy tilt adjustment.
