Tycon Systems

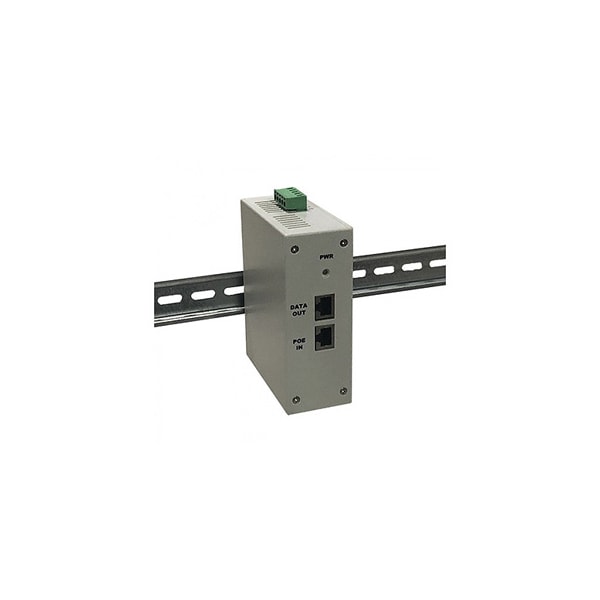

Tpdin Poe Powered Relay

product price: $66.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting DIN Rail
  • Wire Size 12AWG
  • Data PassThrough 10/100/1000Mbps
  • Connections Removable Wire Terminal
  • PoE Input Requirements 802.3af/at/bt Class 0 PoE or 24V Passive PoE
See all product information

Product Information

Dimensions

Wire Size 12AWG
Dimensions(LxWxH) 125 x 102 x 46mm (4.9" x 4" x 1.8")

Details

Item Powered Relay
Mounting DIN Rail
Data PassThrough 10/100/1000Mbps
Connections Removable Wire Terminal
PoE Input Requirements 802.3af/at/bt Class 0 PoE or 24V Passive PoE
Relay Function PoE ON- Relay Closed, LED ON PoE OFF - Relay Open, LED OFF
Operating temperature -40C to +70C (-40F to 158F)
Self Consumption Power <1W
Humidity(RH) 0% - 90%
Data Protection Pin to Pin (1-2, 3-6, 4-5, 7-8) Clamp Voltage: 3.3V ESD, IEC61000-4-2: +/- 30KV contact and air EFT, IEC61000-4-4: 40A (5/50us) Lightning, IEC61000-4-5: 15A (8/20us)
Relay Type NO & NC 10A 30VDC/250VAC

Description

PoE Powered 10A Relay, 802.3af/at/bt Class 0 or 24V passive PoE, NO & NC Connections, Gigabit data passthru with surge protection. -40 to +70C
