  11. UPS System, Out: 24/48V DC In: 120/240V AC

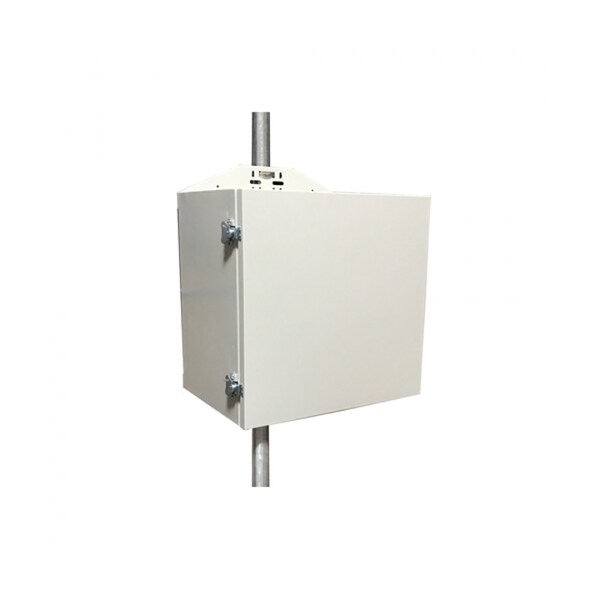

Tycon Systems UPS System, Out: 24/48V DC In: 120/240V AC UPSTL48-200-600 - main

UPS System, Out: 24/48V DC In: 120/240V AC

  • Mfr # UPSTL48-200-600

  • Zoro # G700703130

product price: $3,101.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.

Key Features

Mounting
Pole/Wall
Wattage
600 W
Input Voltage
120/240V AC
Output Voltage
24/48V DC
Battery Type
Valve Regulated Sealed Lead Acid /Absorbed Glass Mat (AGM)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UPSTL48-200-600
Zoro #
G700703130
UPC #
810017122851
Country of Origin
United States

Dimensions

Enclosure Internal Size
23.9 x 23.9 x 16.1" (608 x 608 x 409.5mm)
Enclosure External Size
24.1 x 24.1 x 17.5" (612.5 x 612.5 x 445.6mm)
Maximum Solar Panel Size
960W

Details

Item
UPS System
Mounting
Pole/Wall
Wattage
600 W
Input Voltage
120/240V AC
Output Voltage
24/48V DC
Battery Type
Valve Regulated Sealed Lead Acid /Absorbed Glass Mat (AGM)
Standards
Individual components used have CE Certifications. Batteries have CE and UL.
Maximum Charge Controller Load
150W 48V outputs, 72W 24V outputs (overall total 222W)
Bulk Charge
57.6V
Operating temperature
-30°C to +60°C (-22°F to 140°F)
Battery Cable Fuse
40A 250V Blade Fuse
Enclosure Type
Powder Coated Steel - Pole/Wall Mount - Padlock Closure
Float Charge
55.2V
Suggested Maximum Load
450W
Max Output Power
600W
Over-discharge recovery voltage
50.4
Over-discharge protection
44V
Controller Type
20A MPPT Solar Controller with 7 port GigE PoE Switch, 4 ports configurable as 802.3at or 24V Passive, 3 ports configurable as 24/48V Passive PoE, Aux port configurable as 24/48V 2.25A, Managed, Email Alerts, Data Logging, Remote Management
Battery Voltage (DC)
48V
Controller Self Consumption
<3.5W

Description

UPSPro 200W 2400VA, 24/48VDC Output, 7 Gigabit 802.3at PoE Ports, 1 Aux Port, 120/240VAC Input, Lg Steel Encl, 4x 12V50Ah AGM Batteries

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
