This item is Discontinued.

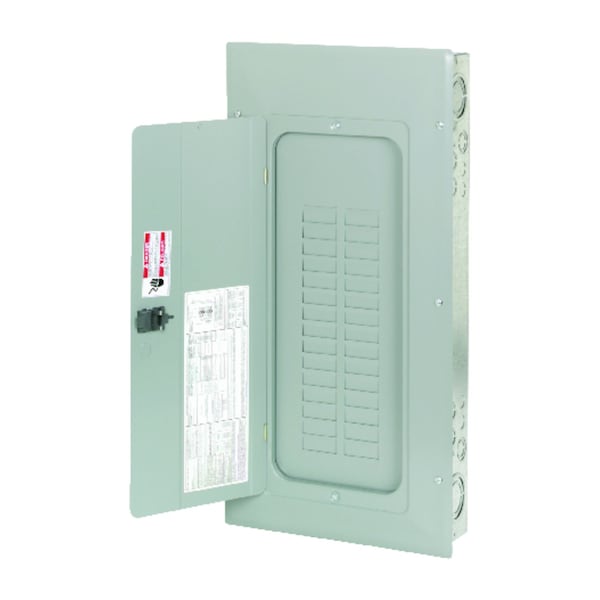

Type Br Load Center, BRP, 30 Spaces, 200A, 120/240V AC, Main Lug, 1 Phase BRP30L200

Load Center, BRP, 30 Spaces, 200A, 120/240V AC, Main Lug, 1 Phase (Discontinued)

  • Mfr # BRP30L200
  • Zoro # G205302807
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BRP30L200
Zoro #
G205302807
UPC #
786689052881
Country of Origin
United States

Dimensions

Height
3.88 in
Width
14.31 in
Depth
29.12 in

Details

Item
Load Center
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
30
Amps
200A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
BRP
Included Enclosure Cover
Cover Included
Enclosure Material
Metallic
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
Mounting Style
Surface, flush
Color
Gray
Weight
26.2 lb
Standards
UL 50
Number Of Circuits
60
Number of wires
Two hots, neutral and ground
Number Of Poles
Single-pole
Used with
Type BR 1-inch breakers

Description

Specially designed for easy installation, Eaton's


  • • 200 Amp Main Lug Load Center
  • • 30-1" Spaces, 40 Circuits
  • • Top or Bottom Feed
  • • Indoor, NEMA 1
  • • Surface or Flush Mount
  • • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers
