This item is Discontinued.

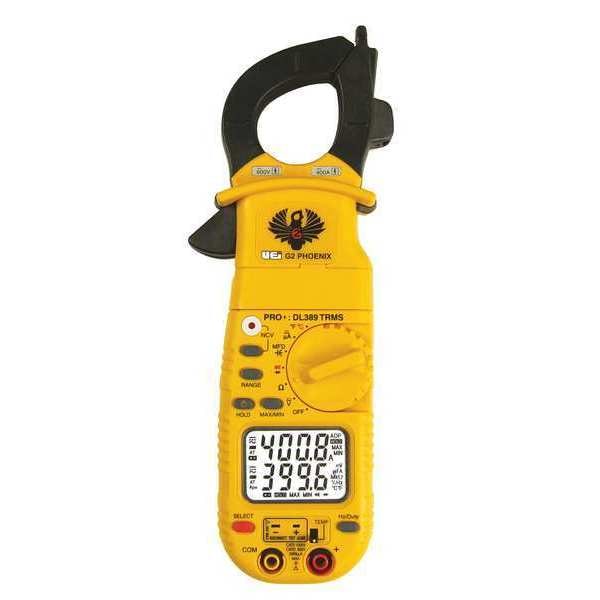

Uei Test Instruments Clamp Meter, Analog, 400 Max. AC Amps DL389B

Clamp Meter, Analog, 400 Max. AC Amps (Discontinued)

  • Mfr # DL389B
  • Zoro # G7751534
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DL389B
Zoro #
G7751534
UPC #
053533508413
Country of Origin
Korea, Republic of

Dimensions

Manufacturers Warranty Length
2 yr
Max. Conductor Size
750 kcmil
Maximum Conductor Size
750 kcmil
Battery Size
AAA

Details

Digital/Analog
Digital
Jaw Capacity
1.2 in (30 mm)
Capacitance
4,000 uF
Max. Ohms
40 megaohm
Safety Rating
CAT II 1000V, CAT III 600V
Includes
(2) Batteries, K-Type Temperature Probe, Pouch, Test Leads
Counts
4,000
Auto Ranging
Yes
Max. AC Volts
750 V
Max. DC Volts
400 V
Data Hold
Yes
Standards
ETL
Jaw Style
Clamp-Jaw
Calibration Certificate
Not Included
Special Features
Dual Display
Display Type
Backlit
Frequency Counter
199 kHz
Non-Contact Voltage Detector
Yes
Thermometer Type
Type K Thermocouple
Bar Graph Included
No
Calibration Frequency
50 to 60 Hz
Safety Rating_Background
DL389B ; CAT III 600V
Calibration Certificate Included
No
Maximum AC Current Measurement
400 A
Auto Power Off
Yes
Audible Continuity
Yes
Diode Test
Yes
Maximum DC Current Measurement
400 A
Maximum Capacitance Measurement
4,000 uF
AC Response Calculation
TRMS
Maximum DC Voltage Measurement
400 V
Maximum AC Voltage Measurement
750 V
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)
Jaw Opening
1.2 in
Inrush Current Measurable
No
Peak Hold
No
Midscale Resistance
20 ohm
Maximum Resistance Measurement
40 megaohm
Memory
Max/Min

Description

If you are looking for a dependable clamp meter, the UEI DL389B is the perfect tool. It provides accurate measurements of current, voltage and resistance in both AC and DC currents. The CAT II 1000V safety rating makes this analog clamp meter ideal for use around electrical panels. With a jaw capacity of 1.2 in, it can be used to measure conductors up to 750 kcmil. This digital/analog clamp meter has an auto ranging function that eliminates the need to adjust settings manually before each measurement. You can get readings on the LCD display with four digits. There is also a backlight feature so you can see your readings even in dimly lit areas or at night time. If you are serious about getting accurate measurements every time, then the UEI DL389B Clamp Meter will definitely help you out.
