  5. Clamp Meter, Backlit LCD, 600 A, 1.3 in (33 mm) Jaw Capacity, Cat IV 600V Safety Rating

This item is Discontinued.

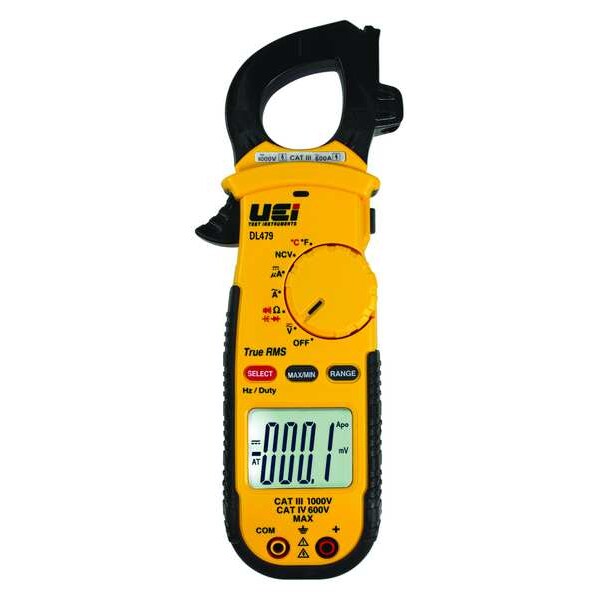

Uei Test Instruments Clamp Meter, Backlit LCD, 600 A, 1.3 in (33 mm) Jaw Capacity, Cat IV 600V Safety Rating DL479

Clamp Meter, Backlit LCD, 600 A, 1.3 in (33 mm) Jaw Capacity, Cat IV 600V Safety Rating (Discontinued)

  • Mfr # DL479
  • Zoro # G5767085
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DL479
Zoro #
G5767085
UPC #
053533507447
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Max. Conductor Size
4/0 AWG
Battery Size
(2) AAA
Maximum Conductor Size
4/0 AWG

Details

Item
Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
60 megaohm
Jaw Capacity
1.3 in (33 mm)
Temp. Range
14 Degrees to 752 Degrees F
Safety Rating
CAT IV 600V
Display
Backlit LCD
Jaw Opening
1.3 in
Max. DC Amps
2,000 uA
Max. AC Volts
750 V
Counts
6,000
Capacitance
2,000 uF
AC Response
TRMS
Standards
CE, cETLus, IEC, RoHS
Peak Hold
No
Operating Temp.
32 Degrees to 104 Degrees F
Diode Test
Yes
Includes
Alligator Clips, Batteries, K-Type Thermocouple ATT29A, Pouch, Test Leads
Audible Continuity
Yes
Special Features
Built-In NCV Detector, Magnetic Mount, Worklight
AC Current Accuracy
+/-2.0% + 8 Digits
Thermometer Type
Type K Thermocouple
Auto Ranging
Yes
Battery Type
(2) AAA
Calibration Certificate
Not Included
Auto Power Off
Yes
Memory
Max/Min
Inrush
No
Non-Contact Voltage Detector
Yes
Frequency Counter
9.999 kHZ
Bar Graph
No
Data Hold
Yes
Maximum Capacitance Measurement
2,000 uF
AC Response Calculation
TRMS
Maximum AC Voltage Measurement
750 V
Maximum DC Voltage Measurement
600 V
Bar Graph Included
No
Display Type
Backlit LCD
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)
Inrush Current Measurable
No
Safety Rating_Background
DL479 ; CAT IV 600V
Maximum AC Current Measurement
600 A
Maximum DC Current Measurement
2,000 uA
Maximum Resistance Measurement
60 megaohm
Jaw Style
Clamp-Jaw
Calibration Certificate Included
No

Description

Clamp Meter, Audible Continuity Yes, Safety Rating CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 750 V, Maximum DC Current Measurement 2,000 uA, Maximum DC Voltage Measurement 600 V, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K), Jaw Opening 1.3 in, Jaw Style Clamp On, Calibration Certificate Included No, Special Features Built-In NCV Detector, Magnetic Mount, Worklight, Data Hold Yes
