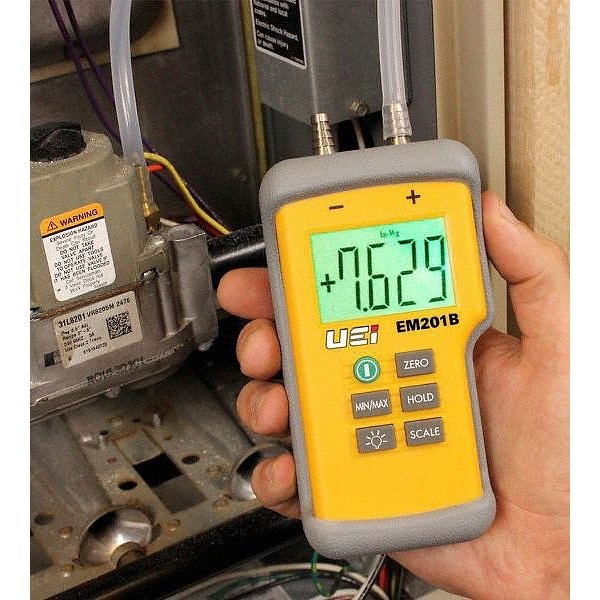

Uei Test Instruments Static Pressure Test Kit EM201SPKIT - main

Static Pressure Test Kit

  • Mfr # EM201SPKIT

  • Zoro # G5215131

product price: $262.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.02 Below 2 in wc, +/-1% Above 2 in wc
Process Connection Type
Hose Barb
Process Connection Size
1/4 in
Application
Gas
Pressure Range
-60 in wc to 60 in wc
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EM201SPKIT
Zoro #
G5215131
UPC #
053533506235
Country of Origin
Taiwan, Province of China

Dimensions

Process Connection Size
1/4 in
Manufacturers Warranty Length
3 yr
Battery Size
9V

Details

Item
Air Manometer Kit
Accuracy
+/-0.02 Below 2 in wc, +/-1% Above 2 in wc
Process Connection Type
Hose Barb
Application
Gas
Pressure Range
-60 in wc to 60 in wc
Connection Type
(2) 1/4 in Barbs
Battery Type
9V
Includes
(2) Magnetic Static Pressure Probe Tip, (2) Pressure Tubes with Brass Fitting, 60 in Pressure Tube, Dual Input Electronic Manometer, Soft Carrying Case, Stepped T Fittings 2
Operating Range
10 to 90% RH Non-Condensing
Operating Temp. Range
32 to 104 Degrees F (0 to 40 Degrees C)
Display
4-Digit Backlit LCD
Resolution
0.001 in wc
Standards
CE, RoHS
Type
Digital
Alarm
No
Max. Pressure
2.16 psi
Velocity
None
Calibration Certificate Included
No
Data Storage
No
Pressure Resolution
0.01 psi
Pressure Units
in wg, mbar, Pa, psi
Batteries Required
Yes
Minimum Operating Temperature
32 Degrees F
Maximum Operating Pressure
60 psi
Manometer Type
Digital Static Pressure Test Kit
Operating Pressure Range
10 to 90% RH Non-Condensing
Auto Power Off
Yes
Pressure Accuracy
+/-0.02 in WG Less Than 3 in wc, +/-1%RDG Greater Than 3 in wc
Display Units
inWG, mBar, Pa, psi
Digital Display Features
4 Digit Backlit LCD
Maximum Operating Temperature
104 Degrees F
Maximum Pressure
60 in wc
Includes Batteries
Batteries Included
Minimum Pressure
-60 in wc
Includes Alarm
No Alarm Included
Pressure Measurement - Maximum
60 in wc
Number of Digits
4
Operating Temperature - Maximum
104 Degrees F
Digital Display Type
Backlit LCD
Intrinsic Safety
Not Specified Intrinsically Safe
Includes Data Logging
No Data Logging Included
Pressure Measurement - Minimum
-60 in wc
Pressure Type Measured
Differential
Operating Temperature - Minimum
32 Degrees F
Operating Pressure - Maximum
10 psi
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included

Description

Air Manometer Kit, Maximum Pressure 60 in wc, Minimum Pressure -60 in wc, Pressure Accuracy +/-0.02 in WG less than 3 in wc, +/-1 PercentRDG greater than 3 in wc, Process Connection Size 1/4 in, Process Connection Type Hose Barb, Includes Batteries Batteries Included, Digital Display Features 4 Digit Backlit LCD, Series Not Applicable, Pressure Units in wg, mbar, Pa, psi, Air Velocity Units Not Applicable, Air Volume Units Not Applicable, Alarm No, Application Gas, Auto Power Off Yes

Restrictions

Hazardous material
