Shop UEI TEST INSTRUMENTS

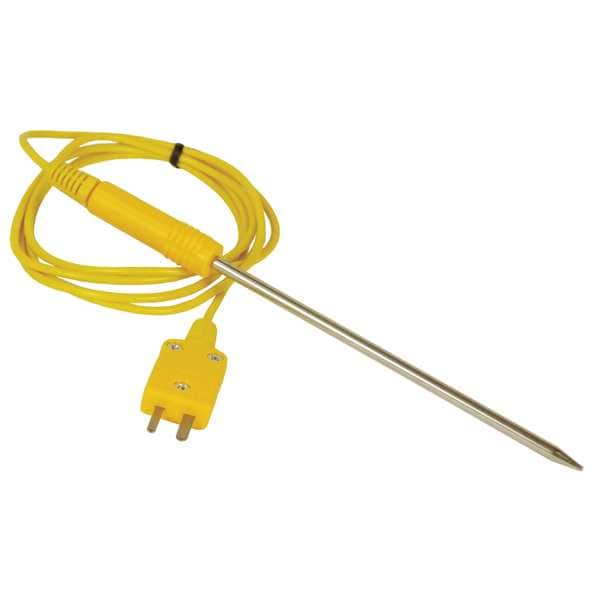

Thermocouple Probe, Type K

  • Mfr # ATT100

  • Zoro # G3024655

product price:
$
30.89
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 950 Degrees
Temp. Range (C)
-40 Degrees to 510 Degrees
Probe Length
6 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATT100
Zoro #
G3024655
UPC #
053533602357
Country of Origin
Korea, Republic of

Dimensions

Probe Length
6 in
Probe Wire Length
4 ft
Wire Length
4 ft.
Probe Diameter
0.125 in
Opening/Diameter
1/8 in
Cable Length
4 ft
Probe Size
1/8 in x 6 in
Probe Tip Diameter
1 mm

Details

Item
Immersion Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-40 Degrees to 950 Degrees
Temp. Range (C)
-40 Degrees to 510 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Mini
Probe Contact Material
Stainless Steel
Use
Air or Liquids
Response Time
2 sec
Temperature Measuring Element
K Thermocouple
Probe Sheath Material
Stainless Steel
Thermocouple Type
Type K
For Gases
Yes
Maximum Temperature C
510 Degrees C
Temperature Range
-40 Degrees to 950 Degrees F/-40 Degrees to 510 Degrees C
Cable Material
Fluoroplastic Coated
For Application
Air, Liquid
Probe Bend
Straight
Head Material
Stainless Steel
Minimum Temperature F
-40 Degrees F
For Liquids and Gels
Yes
Connector Type
Mini Plug
Tip Style
Pointed
For Air
Yes
Maximum Temperature F
950 Degrees F
Junction Type
Grounded
Handle Material
Plastic
Maximum Wire Gauge
20 AWG
Minimum Temperature C
-40 Degrees C
Minimum Temperature °F
-40 Degrees F
Maximum Temperature °F
950 Degrees F
Minimum Temperature °C
-40 Degrees C
Maximum Temperature °C
510 Degrees C
Maximum Temperature (°F)
950 Degrees F
Maximum Temperature (°C)
510 Degrees C
For Media Type
Gases, Liquids and Gels

Description

Immersion Temperature Probe, Type K, Grounded, For Application Air, Liquid, Mini Plug, Probe Size 1/8 in x 6 in, Cable Length 4 ft, -40 Degrees to 950 Degrees F/-40 Degrees to 510 Degrees C, Thermocouple
