  11. Indexable Profiling End Mill, 80.00mm, PRC
No Product Image Available

Indexable Profiling End Mill, 80.00mm, PRC

  • Mfr # 974-000-023

  • Zoro # G415546091

product price: $137.99
/ea
Free Shipping & Returns

Key Features

Overall Length
6"
Depth of Cut
0.1250"
Rake
Negative
Insert Style
WNMG
Number of Coolant Holes
6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
974-000-023
Zoro #
G415546091
UPC #
-
Country of Origin
United States

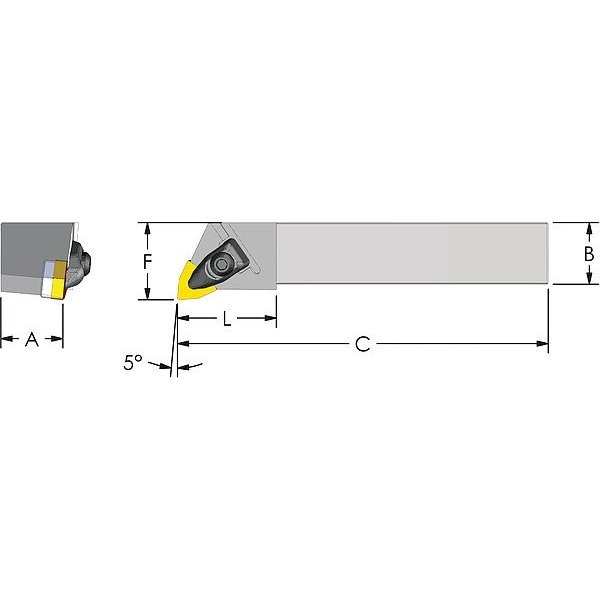

Dimensions

Overall Length
6"
Depth of Cut
0.1250"
Min. Cutting Dia.
64.00mm
Head Length
1.6000"
Insert Size
432
Shank Length
4.40"
Shank Height
1.0000"
Max. Cutting Dia.
80.00mm
Shank Width
1.0000"

Details

Item
Indexable Turning and Profiling Tool Holder
Rake
Negative
Insert Style
WNMG
Number of Coolant Holes
6
Number of Inserts
6
Side Cutting Edge Angle
11 Degrees
Approach Angle
95 Degrees
Cutting Direction
Right Hand
Max. Speed
1970 RPM
ANSI Code
DWLNR 16-4D
Insert Holding Type
Pullback Clamp
Coolant Hole Shape
Round
Compatible Hardware
IWSN-433, PB4-CA, PB4-SS, WNMG 432
Shank Material
Steel
Insert Inscribed Circle
1/4 in
Coolant Fed
Non-Coolant Through
Insert Shape
80 Degrees Trigon
Toolholder Style
DWLNR
Cutting Application
Turning
Side-to-Cutting Tip
1-1/4"
Features
Insert Rotation Notch, Large Body Relief, Secure Insert Clamping with Screws and Wide Chip Pockets, End Mill and Face Mill Styles, Inch and Metric
Insert Clearance Angle
0 Degrees

Description

Indexable Turning and Profiling Tool Holder, DWLNR, Insert Style WNMG, Overall Length 6 In.

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
