  9. Stage Regulator, Oxygen, Single Stage, 0.908"-14 Inlet, 9/16"-18 Outlet, 5 to 125 psi

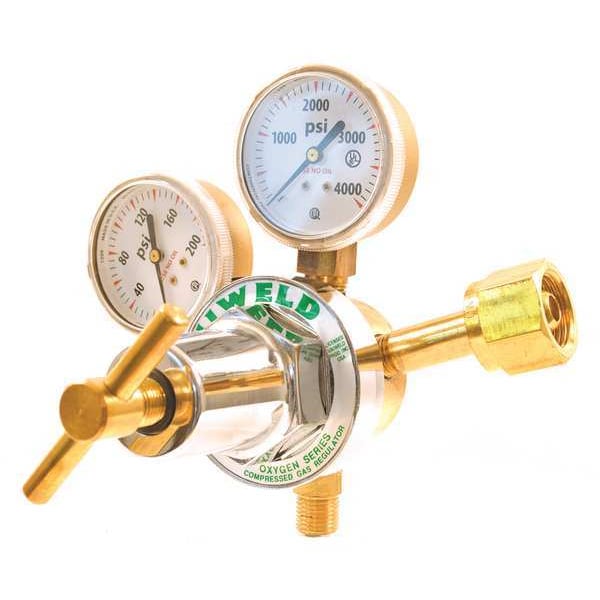

Uniweld Stage Regulator, Oxygen, Single Stage, 0.908"-14 Inlet, 9/16"-18 Outlet, 5 to 125 psi RUH8210 - main

Stage Regulator, Oxygen, Single Stage, 0.908"-14 Inlet, 9/16"-18 Outlet, 5 to 125 psi

  • Mfr # RUH8210

  • Zoro # G2596441

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Compatible Gas Type
Oxygen
Outlet Connection Size
9/16"-18
Body Material
Polished Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
125 psig
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUH8210
Zoro #
G2596441
UPC #
688456110001
Country of Origin
United States

Dimensions

Outlet Connection Size
9/16"-18
Gauge Diameter
2 in
Inlet Connection Size
0.908"-14
Overall Length
9-7/16"
Hose Fitting Size
B
Dedupe with CGA Number and Inlet Connection Size
CGA 540

Details

Item
Stage Regulator
Compatible Gas Type
Oxygen
Body Material
Polished Brass
Number of Stages
Single Stage
Outlet Pressure (Maximum)
125 psig
Outlet Pressure (Minimum)
5 psig
Regulator Supply Type
Cylinder
Includes
Easy-to-Read 2 in Gauge, Heavy Duty Mechanical Stem Type Seat and Nozzle Assembly, Polished Chrome Bonnet
Delivery Pressure Range
5 to 125 psi
Diaphragm Material
Neoprene
Gauges Delivery Pressure
200 psi
Regulator Capacity
Medium Duty
Supply Pressure Gauge
0 to 4000 psi
Regulator Application
General Purpose
Delivery
5 to 125 psi
Application
General Purpose
Standards
UL Listed
Stages
Single Stage
Features
Delrin Bushing for Smooth Flow Adjustment, Fine Mesh Filter Screen Between Inlet and Seat, Porous Metal Inlet Filter (Except CO2 Models), Pressure Relief Device for Low Pressure Gauge Protection Only
Duty Rating
Heavy Duty
Inlet Pressure (Maximum)
3,000 psig
Outlet Connection Type
UNF
Inlet Thread Direction
Right Hand
Regulator Series
RUH82
Bonnet Material
Polished Chrome
Inlet Connection Gender
Male
Outlet Thread Direction
Right Hand
Inlet Connection Type
NGO
Control Type
T-Handle
Maximum Gauge Outlet Pressure
4,000 psig
Body Finish
Polished
CGA Number
CGA 540
Outlet Connection Gender
Male

Description

Stage Regulator, Maximum Gauge Outlet Pressure 4,000 psig, Number of Stages Single Stage, Compatible Gas Type Oxygen, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.908 In.-14, Outlet Pressure (Maximum) 125 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Body Finish Polished, Diaphragm Material Neoprene, CGA Number CGA 540, Hose Fitting Size B
