  11. Agricultural Fan Motor, 56Y, 1/2 hp

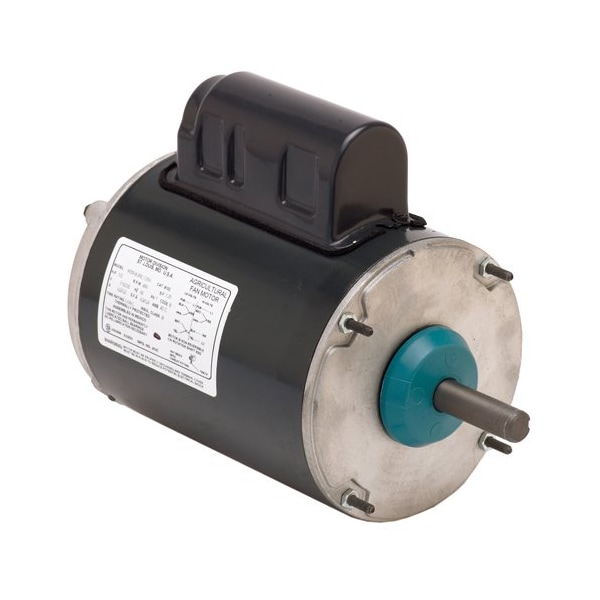

U.S. Motors Agricultural Fan Motor, 56Y, 1/2 hp FD12BA2P - main

Agricultural Fan Motor, 56Y, 1/2 hp

  • Mfr # FD12BA2P

  • Zoro # G1932160

product price: $199.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FD12BA2P
Zoro #
G1932160
UPC #
786382073923
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Bolt Circle Dia.
5 13/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
9 1/2 in
Overall Length
11 3/8 in

Details

HP
1/2
Nameplate RPM
1,725
Voltage
115/230V AC
Frame
56
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Capacitor Required
No
Motor Sub Application
Agricultural Fan
Motor Application
Farm Duty
Motor Enclosure Design
Totally Enclosed Air-Over
Full Load Amps
8.0/4.0 A
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Motor Mounting Type
Rigid Base
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Motor Service Factor
1.25
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Hz
60 Hz
Motor Shaft Design
Keyed
Item
Farm Duty Motor
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 208V
No
Item - Farm Duty Motors
Farm Duty Motor
Weight
24 lb
Duty Cycle
Continuous
Motor Frame Material
Steel
Nominal Efficiency
70.4 %
Usable @ 200V
No
Includes
Built-in Conduit Box
Extended Thru-Bolts
No
Standards
CSA, UL (E22922)
Finish
Enamel

Description

Agricultural Fan Motor, Single Phase, Motor Design Split-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0/4.0 A, 56Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
