Shop U.S. MOTORS

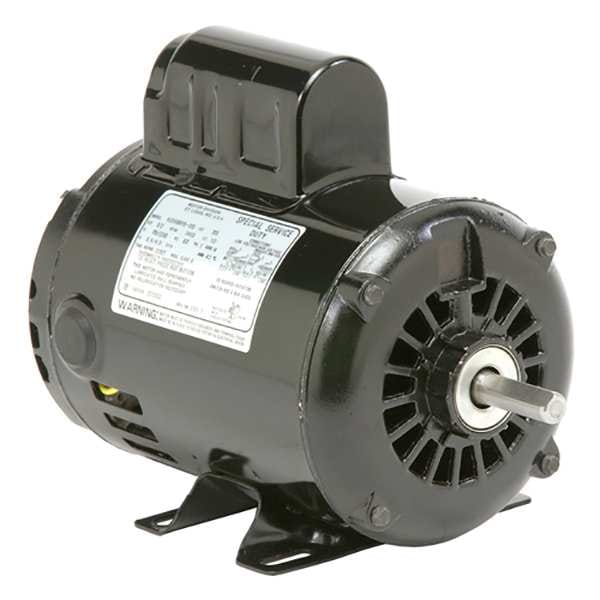

Air Compressor Motor, 2 hp, 115/230V AC

  • Mfr # 3768

  • Zoro # G1933560

product price:
$
260.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
HP
2 hp
Voltage
115/230V AC
Overall Length
11 15/16 in
Standards
CE Certification, CSA, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3768
Zoro #
G1933560
UPC #
786382054724
Country of Origin
Mexico
Phase
Single
HP
2 hp
Voltage
115/230V AC
Standards
CE Certification, CSA, UL Listed
RPM Range
3,001-3,600
Motor Mounting Type
Rigid Base
Motor Enclosure Design
Open Drip Proof
Nameplate RPM
3,450 RPM
Motor Shaft Design
Keyed
Ins. Class
B
Motor Application
Air Compressor
Max. Ambient Temp.
40 Degrees C
Frame
56
Motor Mounting Position
Horizontal
Motor Service Factor
1
Motor Bearings
Ball
Motor Thermal Protection
Manual
Motor Shaft Rotation
CCWSE
Motor Design
Capacitor-Start/Run
Voltage Compatibility
115/230V AC
No. of Speeds
1
Item
Air Compressor Motor
Full Load Amps
15.0 A/7.5 A
Hz
60 Hz
Weight
32 lb
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 15.0 A/7.5 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 5/8 in
