Shop U.S. MOTORS

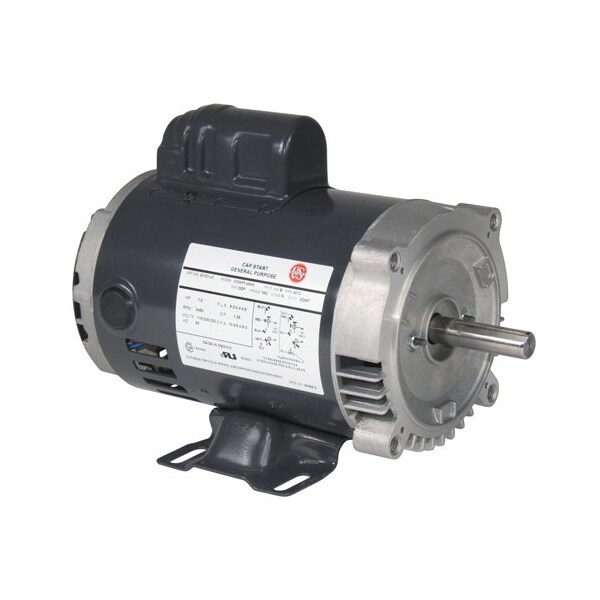

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56HC Frame

  • Mfr # D2CP2PHC

  • Zoro # G7599366

product price:
$
950.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
C-Face, Rigid Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D2CP2PHC
Zoro #
G7599366
UPC #
786382110277
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
13 3/8 in
Shaft Length
1 15/16 in
Length Less Shaft
11 7/16 in
Frame Size
56HC
Shaft Diameter
5/8 in
Wire Rope Length
13 3/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
C-Face, Rigid Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56HC
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115V AC, 230V AC
Motor Application
General Purpose
Motor Sub Application
Air Compressors, Blowers, Conveyors, Duty Pumps
Nameplate RPM
1,725 RPM
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Recognized
Hz
60 Hz
Nominal Efficiency
84.5 %
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Phase
Single
Full Load Amps
17.0/8.5 A
Ins. Class
B
Duty Cycle
Continuous
Weight
46 lb
Bearing Protection
Double Shields
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
17.0/8.5 A
Frequency
60 Hz
Insulation Class
B
Application
General Purpose
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
High Efficiency (IE2)
Number of Speeds
1
Bearing Type
Ball
Product Type
General Purpose Motor

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.0/8.5 A, 56HC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
