Shop U.S. MOTORS

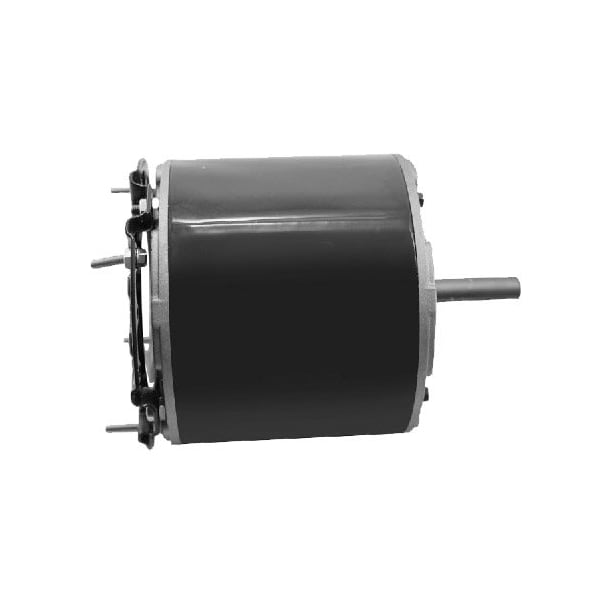

Condenser Fan Motor, 1/20 hp

  • Mfr # LX7929

  • Zoro # G0917145

product price:  $182.99
/ea
Free Shipping & Returns

Key Features

Frame
42Y
HP
1/5 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LX7929
Zoro #
G0917145
UPC #
786382100582
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 in
Length Less Shaft
4 5/16 in
Body Dia.
5.6"
Manufacturers Warranty Length
1 yr
Overall Length
6 5/16 in
Shaft Diameter
1/2 in
Frame Size
42
Body Diameter
5 in
Wire Rope Length
6 5/16 in

Details

Frame
42Y
HP
1/5 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Shaft Rotation
Counterclockwise Lead End
Motor Sub Application
Condenser Fan Motor
Motor Thermal Protection
Auto
Nameplate RPM
1075/900 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Lennox
Phase
1
RPM Range
1,001-1,100
Voltage
208-230V
Motor Bearings
Self Align Bearings
Ins. Class
B
Duty
Totally Enclosed Air Over
Full Load Amps
1.1A
Capacitor Required
Included
Hz
60/50 Hz
Application
Condenser Fan
Voltage Compatibility
208V AC, 230V AC
Motor Mounting Position
Vertical Shaft Down
Frequency
60/50 Hz
Ambient Temperature - Maximum
70 Degrees C
Number of Speeds
1
Product Type
Condenser Fan Motor
Frame Material
Steel
Sub Application
Condenser Fan
Insulation Class
B
Mounting Position
Vertical Shaft Down
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
1.1 A
Drive Type
Direct Drive

Description

Motor,1/5HP,1075,900RPM,60,50HZ,42Y, Motor Design Permanent Split Capacitor, Phase Single, 1/20 HP, No. of Speeds 1, Voltage 208-230V AC, Motor Shaft Rotation CCW, 42 Frame, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Vertical Shaft Down, Shaft Dia. 1/2 in, Shaft Length 2 in, Motor Thermal Protection Auto, Nameplate RPM 1,075, HVAC/R, 60/50 Hz, Full Load Amps 1.1 A, Ins. Class B, Overall Length 6 5/16 in
