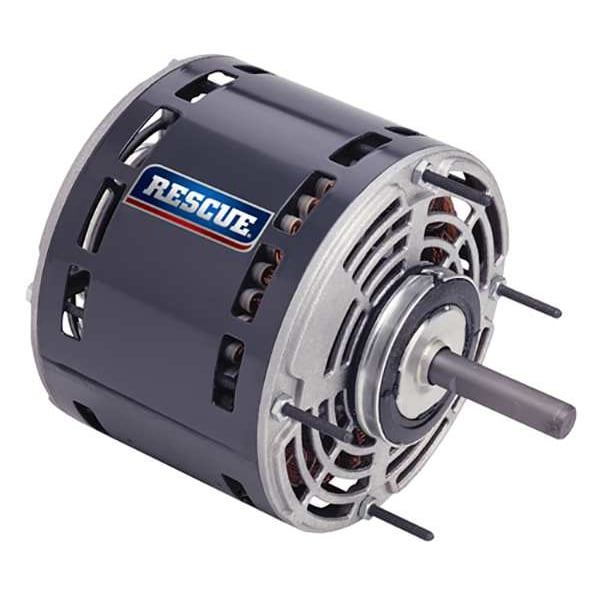

Direct Drive Blower Motor, 1/2 hp
Mfr # 5460
Zoro # G8041635
product price: $153.99
/ea
Free Shipping & Returns
Key Features
HP
1/2
Nameplate RPM
1,075
Voltage
115V AC
Frame
48Y
Shaft Dia.
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5460
Zoro #
G8041635
UPC #
786382067380
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
5 in
Overall Length
10 13/16 in
Resilient Ring Dia.
2 1/2 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/16 in, 1 1/4 in
Stud Size
1-1/16 in
Length Less Shaft
5 13/16 in
Body Dia.
5 5/8 in
Lead Length
36 in
Description
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 4, Voltage 115V AC, 7.3 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
