  11. Motor, 1 HP, 56J Frame, Single Phase

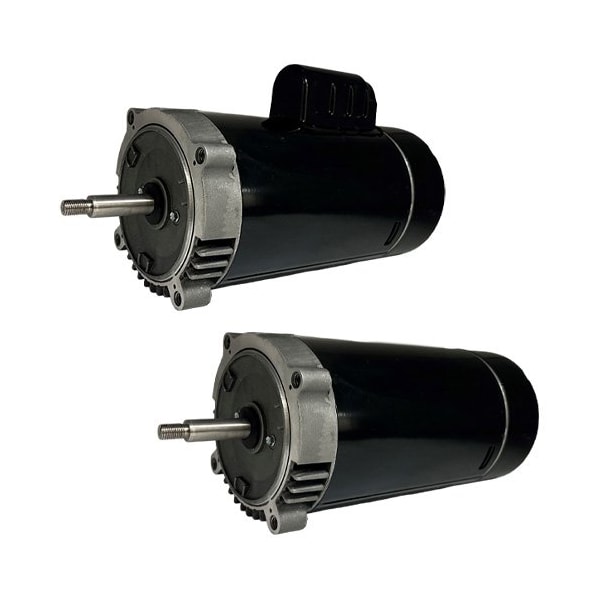

U.S. Motors Motor, 1 HP, 56J Frame, Single Phase JJ1002-2V - main

Motor, 1 HP, 56J Frame, Single Phase

  • Mfr # JJ1002-2V

  • Zoro # G1943412

product price: $298.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
3,450
Voltage
115/230V AC
Frame
56J
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JJ1002-2V
Zoro #
G1943412
UPC #
786382038120
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
11 1/2 in
Bolt Circle Dia.
5 7/8 in
Overall Length
14 in
Body Dia.
5.6 in

Details

HP
1
Nameplate RPM
3,450
Voltage
115/230V AC
Frame
56J
Motor Shaft Rotation
CCW
RPM Range
3,001-3,600
Motor Sub Application
For jet pumps, booster pumps, centrifugal pumps, lawn sprinkler pumps., Special ApplicationSingle Phase Open Dripproof (ODP)Jet Pump C Face
Motor Bearings
Ball
Phase
Single
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Dripproof
Motor Design
Capacitor-Start
Motor Mounting Position
Horizontal
Motor Service Factor
1.4
Ins. Class
B
Hz
60
No. of Speeds
1
Motor Shaft Design
Threaded
Full Load Amps
13.4/6.7
Max. Ambient Temp.
104 Degrees F
Motor Mounting Type
Face/Base
Item
Pump Motor
Motor Application
Pump
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Nominal Efficiency
78.2 %
Usable @ 208V
No
Duty Cycle
Continuous
NEMA Design
56J
Usable @ 200V
No
Motor Frame Material
Steel
Max. SF Amps
16.2/8.1 A
Standards
CSA Certified, UL Listed
Weight
24 lb
Shaft Material
Stainless Steel
Inverter Rated
No

Description

Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 5 7/8 in, Duty Cycle Continuous, Frame 56J, Hz 60, Full Load Amps 13.4/6.7, HP 1, Ins. Class B, Inverter Rated No, Length Less Shaft 11 1/2 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 16.2/8.1 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
