  11. Motor, 1 HP, 56J Frame, Three Phase

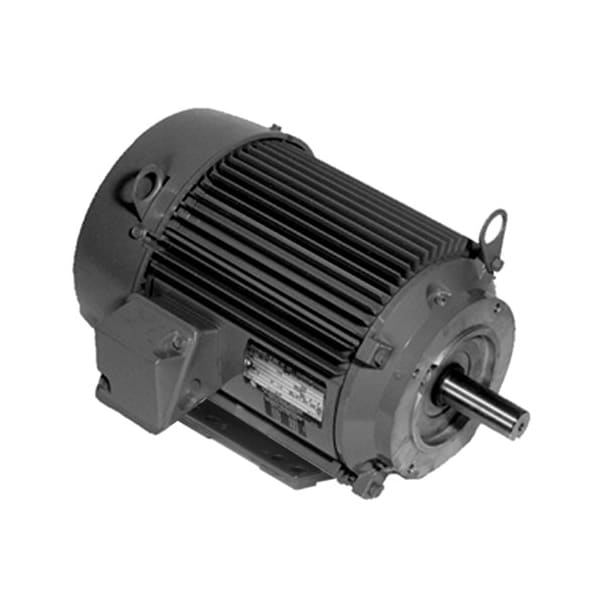

U.S. Motors Motor, 1 HP, 56J Frame, Three Phase EE516 - main

Motor, 1 HP, 56J Frame, Three Phase

  • Mfr # EE516

  • Zoro # G1941349

product price: $278.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
3,450/2,850
Voltage
208-230/460V AC
Frame
56J
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EE516
Zoro #
G1941349
UPC #
786382066826
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
11 3/16 in
Body Dia.
5.9 in
Length Less Shaft
8 5/8 in

Details

HP
1
Nameplate RPM
3,450/2,850
Voltage
208-230/460V AC
Frame
56J
Motor Shaft Rotation
CCW
RPM Range
3,001-3,600
Item
Pump Motor
Full Load Amps
3.5-3.4/1.70
Phase
Three
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings
Ball
Motor Service Factor
1.4
Motor Sub Application
For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasherand part washer pumps, watering and de-watering pumps, and other commercial duty pumping applications., Special Applcation Commercial Pump
Motor Thermal Protection
None
Max. Ambient Temp.
140 Degrees F
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Hz
60/50
Motor Application
Pump
Ins. Class
B
Motor Design
3-Phase
Motor Mounting Type
Face
Motor Mounting Position
Horizontal
No. of Speeds
1
Motor Shaft Design
Threaded
Duty Cycle
Continuous
Weight
28 lb
Usable @ 200V
No
Usable @ 208V
Yes
Conduit Box Location
Exterior
RPM @ 50Hz
3,450/2,850
Voltage @ 50Hz
208-230/460
Nominal Efficiency
77 %
Max. SF Amps
4.4-4.2/2.1 A
Service Factor @ 50Hz
1.4
Full Load Amps @ 50Hz
3.5-3.4/1.7 A
HP @ 50Hz
1
Motor Frame Material
Rolled Steel
Inverter Rated
No

Description

Pump Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60/50, Full Load Amps 3.5-3.4/1.70, Full Load Amps @ 50Hz 3.5-3.4/1.7 A, HP 1, HP @ 50Hz 1, Ins. Class B, Inverter Rated No, Length Less Shaft 8 5/8 in, Max. Ambient Temp. 140 Degrees F, Max. SF Amps 4.4-4.2/2.1 A, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled
