Shop U.S. MOTORS

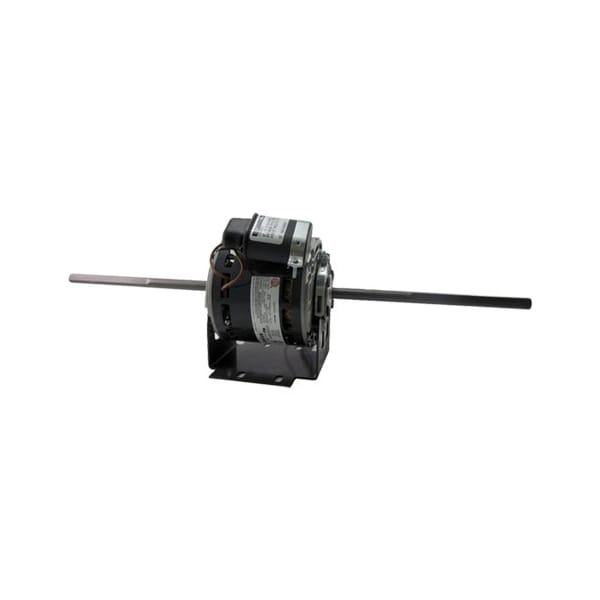

Motor, 1/10HP, 1050/5SPD, 115V, 60HZ, 42Y

  • Mfr # 2827P

  • Zoro # G0913304

product price:
$
303.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/10
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2827P
Zoro #
G0913304
UPC #
786382084530
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/10
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
Frame
42
Motor Mounting Type
Cradle
Phase
Single
Motor Enclosure Design
Open Air-Over
Full Load Amps
2.5 A
Duty
Continuous
No. of Speeds
5
Ins. Class
B
Motor Bearings
Self Align (Opposite End Bearing); Self Align (Shaft End Bearing)
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Max. Amps
5.54 A
Blower Stages
2
Watts
100 W
Weight
14 lb
Duty Cycle
Continuous
Wattage
100 W
Number of Blower Stages
2
Insulation Class
B
Motor Enclosure Type
Open Air Over
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
2.5 A
Sub Application
General Purpose
Frequency
60 Hz
Number of Speeds
5
Capacitor Required
Capacitor Included
Product Type
Fan and Blower Motor
Drive Type
Direct Drive

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 5, Voltage 115V AC, 2.5 A Full Load Amps, 42Y Frame, Output Watts 100 W, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Shaft Length 10 in, Shaft Dia. 1/2 in
