  11. Motor, 1/2 HP, 56J Frame, Single Phase

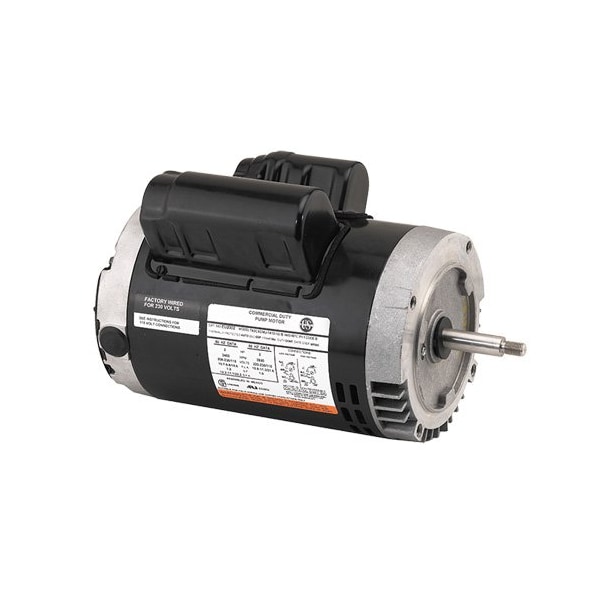

U.S. Motors Motor, 1/2 HP, 56J Frame, Single Phase EU0504 - main

Motor, 1/2 HP, 56J Frame, Single Phase

  • Mfr # EU0504

  • Zoro # G1933630

product price: $424.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
56J
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EU0504
Zoro #
G1933630
UPC #
786382053956
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
5.9 in
Overall Length
10 7/8 in
Length Less Shaft
8 5/16 in
Height
8 5/8 in

Details

HP
1/2
Nameplate RPM
1,725
Voltage
115/208-230V AC
Frame
56J
Motor Shaft Rotation
CCW
RPM Range
1,701-1,800
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Motor Shaft Design
Threaded
Motor Sub Application
For use on chiller, condensate, and other HVAC duty pumps, booster and irrigation pumps, dishwasher and part washer pumps,watering and de-watering pumps, and other commercial duty pumping applications, Special Application Commercial Pump
Item
Pump Motor
Phase
Single
Motor Service Factor
1.3
Ins. Class
B
Motor Mounting Type
Rigid Base
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Hz
60
Motor Bearings
Ball
Motor Enclosure Design
Open Dripproof
Motor Application
Pump
Full Load Amps
8.9/4.4-4.5
Motor Design
Capacitor-Start
Motor Mounting Position
Horizontal
Conduit Box Location
Exterior
Nominal Efficiency
64.6 %
Usable @ 208V
Yes
Duty Cycle
Continuous
Max. SF Amps
10.0/5.1-5.0 A
Usable @ 200V
No
Weight
29 lb
Motor Frame Material
Rolled Steel
Inverter Rated
No

Description

Pump Motor, Body Dia. 5.9 in, Conduit Box Location Exterior, Duty Cycle Continuous, Frame 56J, Hz 60, Full Load Amps 8.9/4.4-4.5, Height 8 5/8 in, HP 1/2, Ins. Class B, Inverter Rated No, Length Less Shaft 8 5/16 in, Max. Ambient Temp. 104 Degrees F, Max. SF Amps 10.0/5.1-5.0 A, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Rolled Steel
