Shop U.S. MOTORS

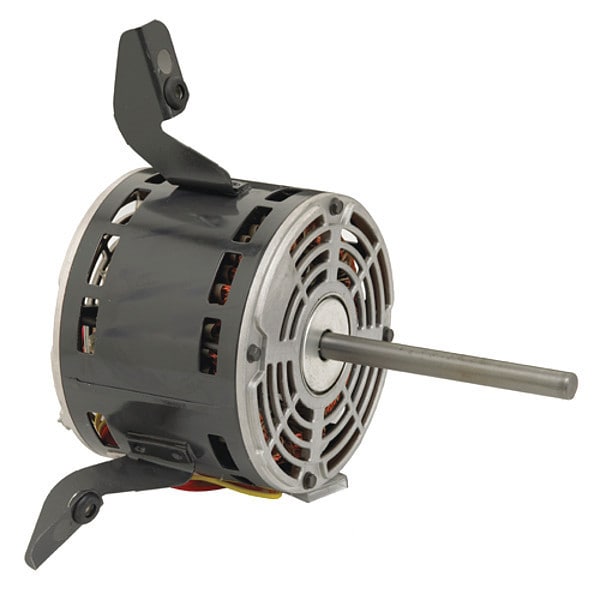

Motor, 1/3HP, 825/3SPD, 208-230V, 60HZ

  • Mfr # 8052

  • Zoro # G0916235

product price:  $218.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
0.33
RPM Range
0-1,000
Nameplate RPM
825
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8052
Zoro #
G0916235
UPC #
786382006846
Country of Origin
Mexico

Dimensions

Overall Length
7 5/16 in
Shaft Length
2 3/16 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
4 13/16 in
Body Diameter
5.6 in
Frame Size
48Y
Wire Rope Length
7 5/16 in
Shaft Diameter
1/2 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
0.33
RPM Range
0-1,000
Nameplate RPM
825
Voltage
208-230V AC
Frame
48
Motor Mounting Type
Bracket
Phase
Single
Motor Enclosure Design
Open Air-Over
Max. Amps
2.25 A
Duty
Continuous
Hz
60 Hz
Motor Shaft Rotation
CCW
Motor Application
Blower; Fan
Full Load Amps
1.9 A
Ins. Class
B
Motor Thermal Protection
Auto
Motor Bearings
Self-Align
No. of Speeds
3
Max. Ambient Temp.
40 Degrees C
Watts
300 W
Weight
17.7 lb
Duty Cycle
Continuous
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Drive Type
Direct Drive
Product Type
Fan and Blower Motor
Number of Speeds
3
Frequency
60 Hz
Full Load Current @ 60 Hz
1.9 A
Sub Application
General Purpose
Application
Fan/Blower
Capacitor Required
Capacitor Not Included
Motor Enclosure Type
Open Air Over

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 3, Voltage 208-230V AC, 1.9 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Bracket, Motor Frame Material Steel, Shaft Length 2 3/16 in, Shaft Dia. 1/2 in
