Shop U.S. MOTORS

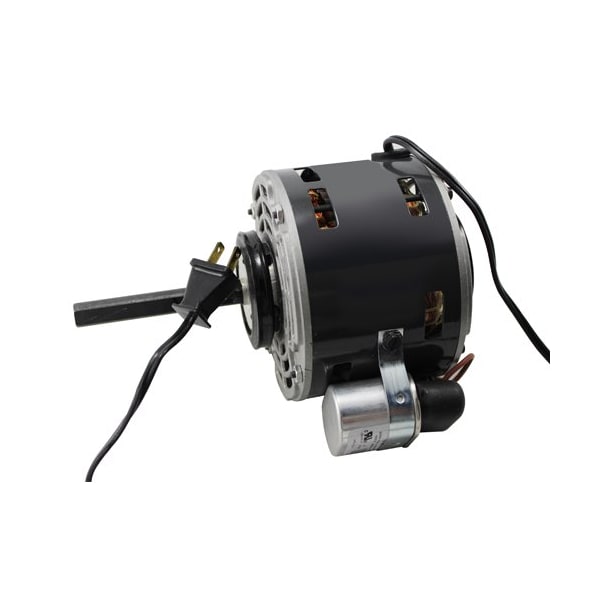

Motor, 1/6HP, 1050RPM, 115V, 60HZ, 42Y

  • Mfr # 2166P

  • Zoro # G0917425

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/6
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2166P
Zoro #
G0917425
UPC #
786382085865
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 11/16 in
Shaft Length
3 1/2 in
Body Dia.
5 in
Shaft Dia.
1/2 in
Overall Length
8 3/16 in
Shaft Diameter
1/2 in
Frame Size
42
Body Diameter
5 in
Wire Rope Length
8 3/16 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/6
RPM Range
1,101-1,200
Nameplate RPM
1,050
Voltage
115V AC
Frame
42
Motor Mounting Type
Hub/Stud
Phase
Single
Motor Enclosure Design
Open Air-Over
Ins. Class
B
Hz
60 Hz
Duty
Continuous
No. of Speeds
1
Motor Shaft Rotation
CCWLE
Motor Bearings
Self-Align
Max. Amps
4.56 A
Motor Thermal Protection
Auto
Full Load Amps
2.6 A
Max. Ambient Temp.
40 Degrees C
Watts
100 W
Weight
8.38 lb
Duty Cycle
Continuous
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Number of Speeds
1
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Frequency
60 Hz
Capacitor Required
Capacitor Included
Sub Application
General Purpose
Frame Material
Steel

Description

Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 2.6 A Full Load Amps, 42 Frame, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Hub, Motor Frame Material Steel, Shaft Length 3 1/2 in, Shaft Dia. 1/2 in
