  11. Motor, 3PH, 2HP, 208-230/460V, SS TC FTL
This item is Discontinued.

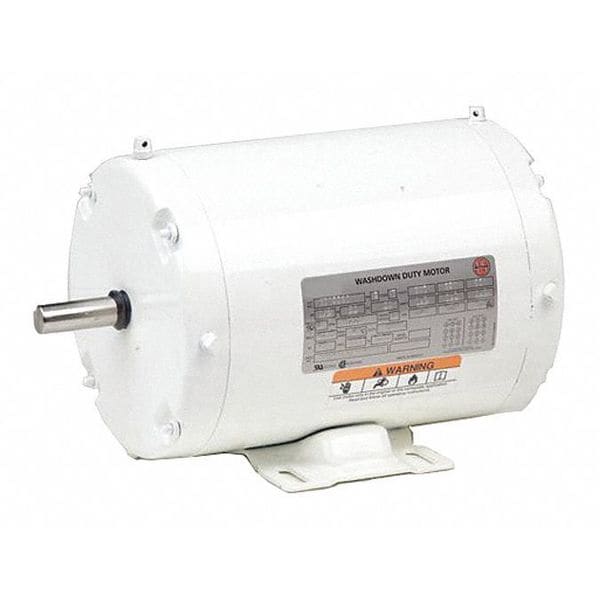

U.S. Motors Motor, 3PH, 2HP, 208-230/460V, SS TC FTL WDS2P2ACR

Motor, 3PH, 2HP, 208-230/460V, SS TC FTL (Discontinued)

  • Mfr # WDS2P2ACR
  • Zoro # G0403269
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WDS2P2ACR
Zoro #
G0403269
UPC #
786382097691
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 1/4 in
Shaft Length
1 15/16 in
Overall Length
13 3/16 in
Body Dia.
6.5 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,735-1,750
Voltage
208-230/460V AC
Frame
145TC
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Max. Ambient Temp.
40 Degrees C
Shaft Material
303
Motor Shaft Rotation
CW/CCW
CC Number
CC030A
Hz
60 Hz
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Motor Service Factor
1.15
Motor Mounting Type
Rigid Base
NEMA Design
B
Full Load Amps
5.8-5.4/2.7 A
Nameplate RPM
1,750 RPM
Standards
BISSC
Motor Application
Food Processing, General Purpose
Nominal Efficiency
86.5 %
Ins. Class
F
Usable @ 208V
Usable at 208V
Weight
47 lb
Finish
Unfinished
Mounting Stud Pattern
3/8-16 x 0.75
Duty Cycle
Continuous
No. of Speeds
1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 5.8-5.4/2.7 A, 145TC Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base
