  11. Motor, 3PH, 5HP, 208-230/460V, SS TC FTL
This item is Discontinued.

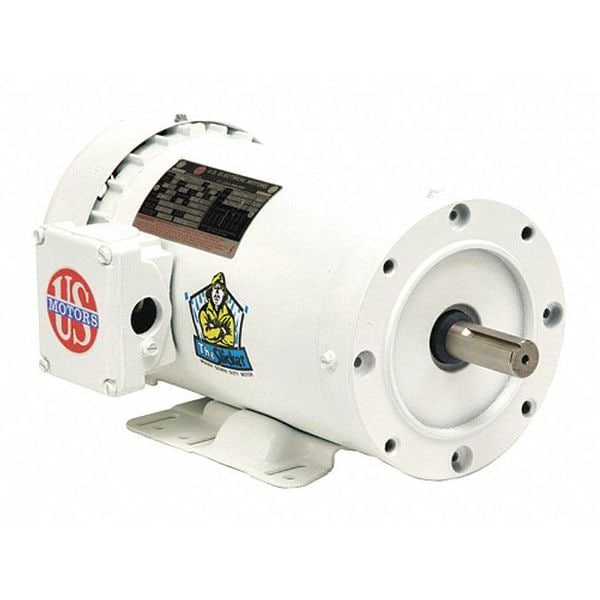

U.S. Motors Motor, 3PH, 5HP, 208-230/460V, SS TC FTL WDS5P2ACR

Motor, 3PH, 5HP, 208-230/460V, SS TC FTL (Discontinued)

  • Mfr # WDS5P2ACR
  • Zoro # G0405944
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WDS5P2ACR
Zoro #
G0405944
UPC #
786382107635
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Body Dia.
8.9 in
Shaft Length
2 3/8 in
Overall Length
18 1/2 in
Length Less Shaft
16 1/8 in
Stud Size
1/2"-13
Bolt Circle Dia.
7 1/4 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
184TC
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,800 RPM
NEMA Design
B
Motor Mounting Position
All Angle
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face, Rigid Base
Motor Shaft Design
Keyed
Standards
BISSC
Motor Service Factor
1.15
Shaft Material
303
Motor Application
Food Processing, General Purpose
Full Load Amps
13.6-12.3/6.1 A
Motor Bearings
Ball
Ins. Class
F
Motor Sub Application
Bakery
Mounting Stud Pattern
1/2-13 x 0.75
Usable @ 208V
Usable at 208V
Inverter Rating
4:1
Endshield Material
Stainless Steel
Finish
Unfinished
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,800 RPM, Voltage 208-230/460V AC, Full Load Amps 13.6-12.3/6.1 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
