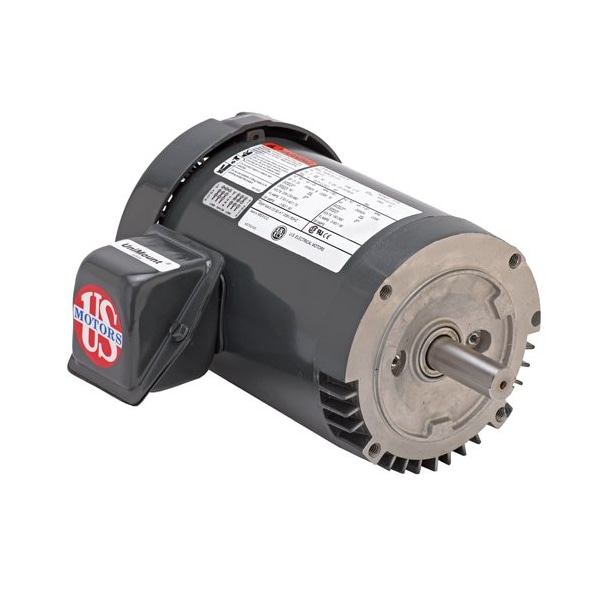

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 208-230/460V AC Voltage, 1755 Nameplate RPM
Mfr # U1P2DCR
Zoro # G6296967
product price:Â
$
449.99
/ea
Free Shipping & Returns
Key Features
HP
1
Nameplate RPM
1755
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
3.1/1.5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- U1P2DCR
- Zoro #
- G6296967
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length Less Shaft
- 11 in
- Overall Length
- 13 1/8 in
- Shaft Dia.
- 7/8 in
- Shaft Length
- 2 1/8 in
- Manufacturers Warranty Length
- 1 yr
- Frame Size
- 143TC
- Shaft Diameter
- 7/8 in
- Wire Rope Length
- 13 1/8 in
- Length
- 13 1/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1755, Frame 143TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.1/1.5 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA (258501), UL (E47479)
