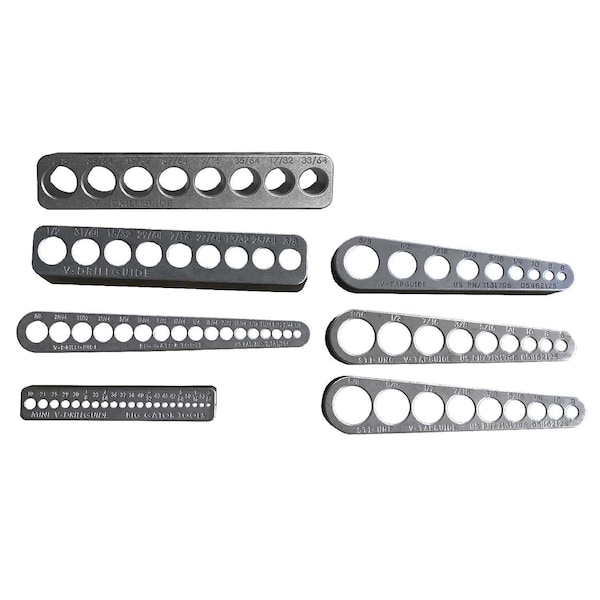

7 Piece Set - Imperial set of the Big Gator Tools line of (4) V-DrillGuides and (3) V-TapGuides

6 Piece Set - Imperial Set of the Big Gator Tools Line (3) V-DrillGuides and (3) V-TapGuides

• •Standard V-DrillGuide® - STD3000DGNP
• •Drill guide is sized for drill bit sizes: 33/64" to 5/8". 8 drill sizes - 1/64" increments. 8 drill sizes include: 33/64”, 17/32”, 35/64”, 9/16”, 37/64”, 19/32”, 39/64”, 5/8”
• •Standard V-DrillGuide® - STD2000DGNP
• •Drill guide is sized for drill bit sizes: 3/8 to 1/2". 9 drill sizes - 1/64" increments. 9 drill sizes include: 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2".
• •Standard V-DrillGuide® - STD1000DGNP
• •Drill guide is sized for drill bit sizes: 1/8 to 3/8". 17 drill sizes - 1/64" increments. 17 drill sizes include: 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8".
• •MINI V-DrillGuide® - SDGMINI:
• •Drill guide has 21 holes: #10, 21, 25, 29, 30, 1/8", 33, 7/64", 36, 37, 38, 40, 3/32", 43, 45, 47, 5/64, 50, 1/16", 53, 3/64".
• •Standard V-TapGuide® - STD500NP
• •Standard V-TapGuide® has 32 Standard Ground Tap Sizes: 0-80, 1/64, 1-72, 2-56, 2-64, 3-48, 3-56, 4-36, 4-40, 4-48, 5-40, 5-44, 6-32, 6-36, 6-40, 8-32, 8-36, 8-40, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20, 5/8-11, 5/8-18". (Tap guide does cover tap sizes 0-80 to 5/8, except #12 and 9/16. 0-80 to #6 have the same size shank, so only one hole size is needed.)
• •STI-UNC V-TapGuide® - STI-UNC100SNP
• •10 Unified Coarse Thread sizes: 9/16-12, 1/2-13, 7/16-14, 3/8-16, 5/6-18, 1/4-20, 12/24, 10-24, 8-32, 6-32". This guide is for Screw Thread Insert (STI) type ground taps. This guide is for Heli-coil® type ground coarse thread taps.
• •STI-UNF V-TapGuide® - STI-UNF200SNP
• •9 Unified Fine Thread sizes: 5/8-18, 9/16-18, 1/2-20, 7/16-20, 3/8-24, 5/6-24, 1/4-28, 10-32, 8-36". The V-TapGuide® is for Heli-coil® type ground fine thread taps.
