Shop VALLEY CRAFT

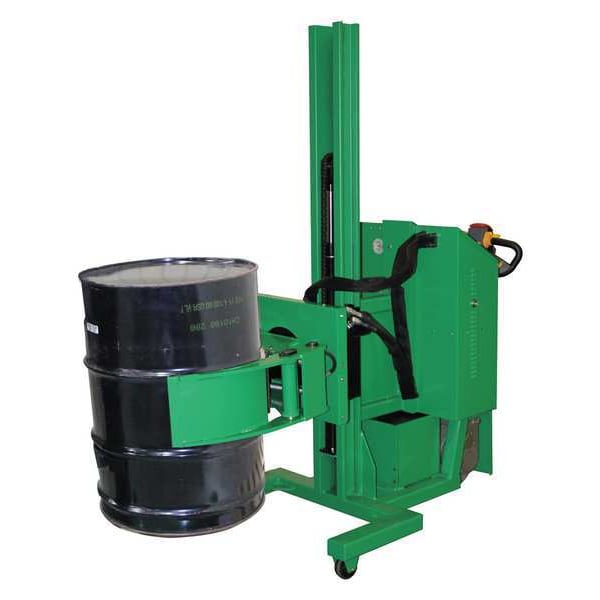

Drum Lifter, Portable, 1000 lb., 55 gal.

  • Mfr # F80145A8

  • Zoro # G3495619

product price:  $20,551.99
/ea
Additional $600.00 delivery surcharge applies per item.
See details

Key Features

Includes
(2) 12V DC Batteries, AC Charger, Adjustable Drive System of 1-2.5 mph
Clearance Between Legs
25 in
Rotation
360 Degrees
Dump Angle
120 Degrees
Overall Height
90 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F80145A8
Zoro #
G3495619
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
90 in
Overall Width
32 in
Rotated Height
90 in
Level Height
90 in
Dispensing Height
84 in
Overall Length
71 in
Dia.
18 in to 28 in
Front Wheel Diameter
5 in
Rotation Height
90 in
Rear Wheel Diameter
12 in
For Minimum Drum Diameter
28 in
For Maximum Drum Diameter
18 in
Wire Rope Length
71 in

Details

Item
Portable Lift
Includes
(2) 12V DC Batteries, AC Charger, Adjustable Drive System of 1-2.5 mph
Clearance Between Legs
25 in
Rotation
360 Degrees
Dump Angle
120 Degrees
Load Capacity
1,000 lb
Construction
Steel
Finish
Powerder Coated
Casters
(2) 5 in x 2 in Polyurethane
Lowest Position of Jaws
7 in
Number of Drums
1
Total Raise Time
3.4 in per second
Forward Tilt
120 Degrees
Voltage
24
Drum Rotation
360 Degrees
Type
Portable
Max. Lift
84 in
Rotation Angle
360 Degrees
Wheels
(2) 5x2 in Rigid and 12 in Swivel Polyurethane
Drum Capacity
55 gal
For Drum Capacity
30 gal, 55 gal, 85 gal
Weight Capacity
1,000 lb
Operating Voltage
24V DC
For Container Type
Drums
Drum Tilt Control
Power Tilt
Housing Finish
Powder Coated
Vertical Lift
84 in
Housing Material
Steel
Features
Counterweighted, Dump and Store Drum, Powered Lifting, Quickly and Ergonomically Transport, Ready to Use, Rotating and Driving (Up to 2.5 Mph), Standalone Unit, Straps Secures Drums Manually
Raise Time
3.4 in/sec
Power Source
Battery
Number of Wheels
4
Assembly
Fully Assembled
Caster Type
(1) Swivel Locking in Back, (2) Rigid in Front
Includes Battery
Batteries Included
Drum Securing Mechanism
Grip
For Number of Drums
1
Drum Orientation
Vertical
Wheel Material
Polyurethane
Wheel Type
Caster
For Drum Material
Fiber, Plastic, Metal
Power Source - TS Only
Battery

Description

Portable Lift, Dispensing Height 84 in, Drum Orientation Vertical, Drum Rotation 360 Degrees , Drum Tilt Control Power Tilt, Drum Securing Mechanism Grip, For Container Type Drums, For Drum Capacity 30 gal, 55 gal, 85 gal, For Drum Material Fiber, Plastic, Metal, For Maximum Drum Diameter 18 in, For Minimum Drum Diameter 28 in, Forward Tilt 120 Degrees , Operating Voltage 24V DC, Overall Height 90 in, Overall Length 71 in, Overall Width 32 in, Rotation Angle 360 Degrees , Rotation Height 90 in

Restrictions

Hazardous material
