Valterra

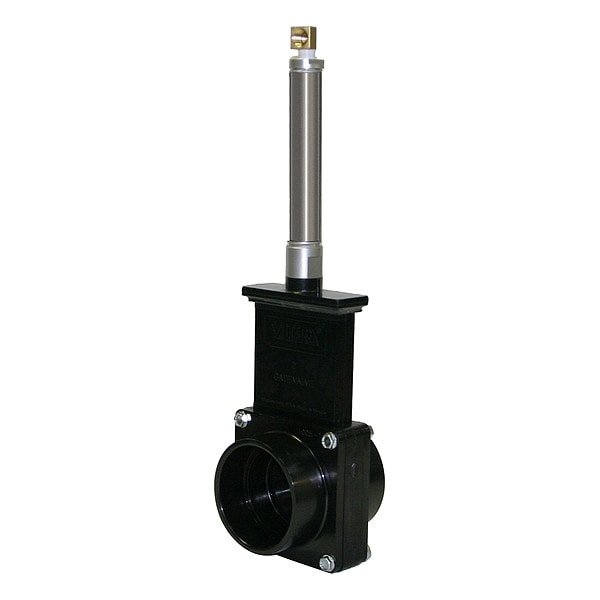

Gate Valve, Class 125, 2 In., Slip

product price: $135.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material ABS
  • Connection Type Slip
  • Body Material - Valves ABS
  • Overall Length 3.5 in
  • Pipe Size - Valves 2 in
See all product information

Product Information

Dimensions

Overall Length 3.5 in
Pipe Size - Valves 2 in
Inlet to Outlet Length 3 1/8 in
Connection Size - Side 2 2 in
Handle Height 5.5 in
Connection Size - Side 1 2 in
Nominal Valve Size 2 in

Details

Item Gate Valve
Body Material ABS
Connection Type Slip
Body Material - Valves ABS
Valve Stem Type Rising
Wedge Material Polypropylene
Stem Material Steel
Bonnet Style Welded
Top of Handle to Inlet Center 5 1/2 in
Standards MSS-SP-70
Max. Cold Working Pressure - CWP 40 psi
Handle Type Wheel
Max. Water Pressure - CWP 70 psi
Valve Max. Fluid Temp. 205 Degrees F
Valve Class Class 125
Handle Material Plastic
Seal Material TPE
Seat Material Polypropylene
For Media Water
Connection Type - Side 2 Slip
Wedge Style Solid
Bonnet Material ABS
Connection Gender - Side 1 Female
Maximum Pressure - Operating 70 psi
Connection Gender - Side 2 Female
Number of Flange Bolt Holes 4
Maximum Pressure - Steam 40 psi
Operating Temperature - Maximum 205 Degrees F
Connection Type - Side 1 Slip
Stem Type Rising

Description

Gate Valve, For Media Water, Body Material ABS, Nominal Valve Size 2 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 70 psi, Maximum Pressure - Steam 40 psi, Stem Type Rising, Stem Material Steel, Wedge Style Solid, Wedge Material Polypropylene, Seat Material Polypropylene, Seal Material TPE, Handle Type Wheel, Bonnet Material ABS, Bonnet Style Welded, Connection Gender - Side 1 Female, Connection Type - Side 1 Slip, Connection Gender - Side 2 Female
