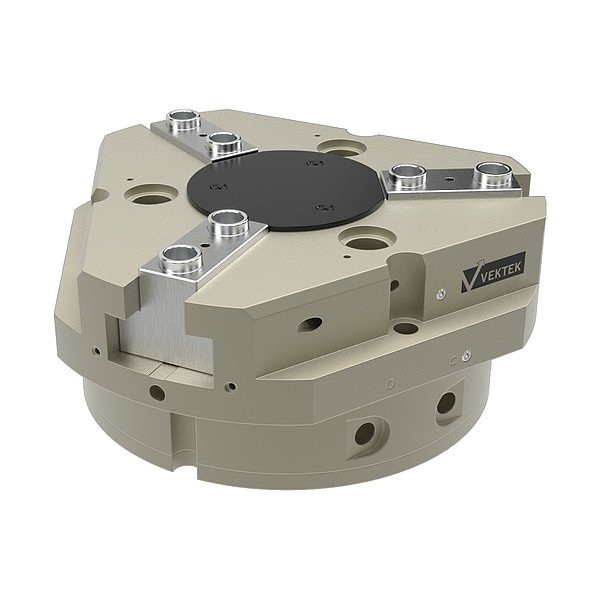

End of Arm Tooling, 67 mm H, 2.47 kg
Mfr # VZP-125-C2
Zoro # G622412462
product price:Â
$
2,417.99
/ea
Free Shipping & Returns
Key Features
Body Material
Aluminum
Minimum Operating Temperature
-10 Degrees C
Total Rated Closing Grip Force @ 6 Bar
5,800 N
Inlet Size
1/8 in
Body Material Finish
Hard Anodized
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VZP-125-C2
- Zoro #
- G622412462
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Inlet Size
- 1/8 in
- Overall Height
- 67 mm
- Open Width
- 5 mm
- Maximum Finger/Jaw Length
- 155 mm
- Stroke Length
- 6 mm
Details
- Body Material
- Aluminum
- Minimum Operating Temperature
- -10 Degrees C
- Total Rated Closing Grip Force @ 6 Bar
- 5,800 N
- Body Material Finish
- Hard Anodized
- IP Rating
- IP40
- Recommended Part Weight - Maximum
- 29 kg
- Maximum Actuation Time
- 0.2 sec
- Total Rated Opening Grip Force @ 6 Bar
- 6,240 N
- Maximum Operating Pressure
- 8 bar
- Weight
- 2.47 kg
- Minimum Operating Pressure
- 2 bar
- Operation Type
- Self-Centering
- Air Inlet Type
- G
- Item
- End of Arm Tooling
- Displacement
- 3,769.02 cc
- Series
- VZP
- Maximum Operating Temperature
- 90 Degrees C
- System of Measurement
- Metric
Description
End of Arm Tooling, Series VZP, Open Width 5 mm, Stroke Length 6 mm, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 2 bar, Overall Height 67 mm, Body Material Aluminum, Inlet Size 1/8 in, Air Inlet Type G, Maximum Operating Temperature 90 Degrees C, Minimum Operating Temperature -10 Degrees C, Weight 2.47 kg, Body Material Finish Hard Anodized, System of Measurement Metric, IP Rating IP40, Displacement 3,769.02 cc, Maximum Finger/Jaw Length 155 mm
