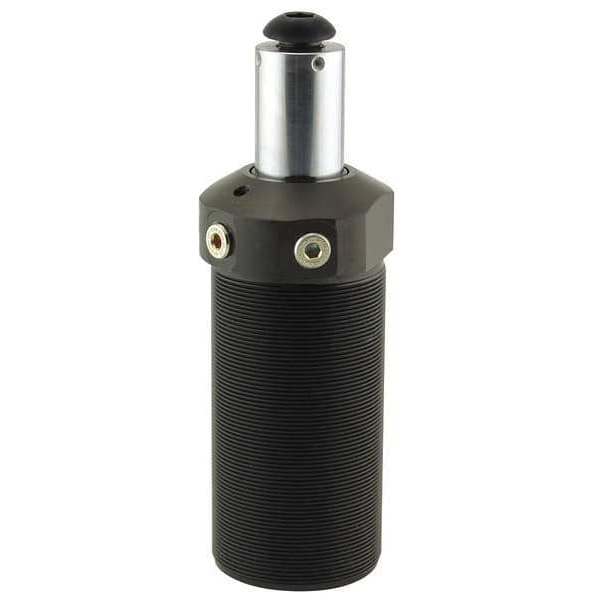

Hydraulic Clamp, Swing, Threaded, 5000 lb.
Mfr # 15-0218-00-R
Zoro # G9244401
product price:Â $788.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Double Acting
Clamping Force
5,000 lbf
Total Stroke
1.66 in
Clamping Stroke
0.63 in
Effective Area Clamped
1.178 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
15-0218-00-R
Zoro #
G9244401
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
4-1/2"
Extended Height
9.96 in
Outside Dia.
2.5 in
Port Size
#4 SAE
Details
Item
Swing Clamp Hydraulic Cylinders
Single Acting/Double Acting
Double Acting
Clamping Force
5,000 lbf
Total Stroke
1.66 in
Clamping Stroke
0.63 in
Effective Area Clamped
1.178 sq in
Turns
Right
Max. Pressure
5,000 psi
Type
Swing
Swing Angle
90 Degrees
Material of Construction
Steel
Mounting Thread
2-1/2"-16
Oil Capacity Unclamped
3.992 cu in
Stroke
0.63" Verticle/1.66" Total
Max. Oil Flow
1.5 gpm
Pressure Range
500 to 5000 psi
Body Style
Threaded
Function
Double Acting
Oil Capacity Clamped
1.955 cu in
Product Type
Swing Clamp Hydraulic Cylinders
Description
Swing Clamp Hydraulic Cylinders, Single Acting/Double Acting Double Acting, Turns Right, Clamping Force 5,000 lbf, Total Stroke 1.66 in, Effective Area Clamped 1.178 sq in, Clamping Stroke 0.63 in, Max. Pressure 5,000 psi, Swing Angle 90 Degrees , Port Size #4 SAE, Oil Capacity Clamped 1.955 cu in, Oil Capacity Unclamped 3.992 cu in, Max. Oil Flow 1.5 gpm, Pressure Range 500 to 5000 psi, Extended Height 9.96 in, Outside Dia. 2.5 in, Mounting Thread 2-1/2 In.-16
