Vektek

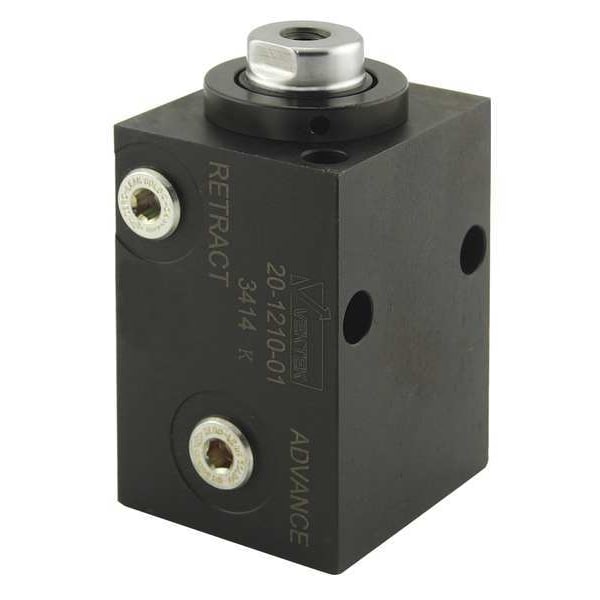

Hydraulic Cylindr, Double, 1-3/4x2in, Stk 1

product price: $346.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Stroke Length 1 in
  • Max. Pressure 5,000 psi
  • Temp. Range 40 Degrees to 160 Degrees F
  • Piston Material Steel
  • Finish Black Hard Coat
See all product information

Product Information

Dimensions

Stroke Length 1 in
Plunger Dia. 0.81 in
Center Hole Dia. 5/16 in
Plunger Thread Size 5/16"-18
Extended Height 4.3 in
Retracted Height 3.3 in

Details

Item Block Body Hydraulic Cylinder
Max. Pressure 5,000 psi
Temp. Range 40 Degrees to 160 Degrees F
Piston Material Steel
Finish Black Hard Coat
Cylinder Type Block Body
Oil Capacity 0.785 cu in
Single Acting/Double Acting Double Acting
Body Material Steel
Effective Area 0.79 sq in
Nominal Capacity 3,900 lb
Series 20-12
Capacity @ Operating Pressure 3,900 lb
Operating Pressure 5,000 psi

Description

Block Body Hydraulic Cylinder, Double Acting, Block Body, Steel, Nominal Capacity 3,900 lb, Stroke Length 1 in, Effective Area 0.79 sq in, Max. Pressure 5,000 psi, Oil Capacity 0.785 cu in, Retracted Height 3.3 in, Extended Height 4.3 in, Capacity @ Operating Pressure 3,900 lb, Operating Pressure 5,000 psi, Series 20-12, Plunger Dia. 0.81 in, Plunger Thread Size 5/16 In.-18, Center Hole Dia. 5/16 in
