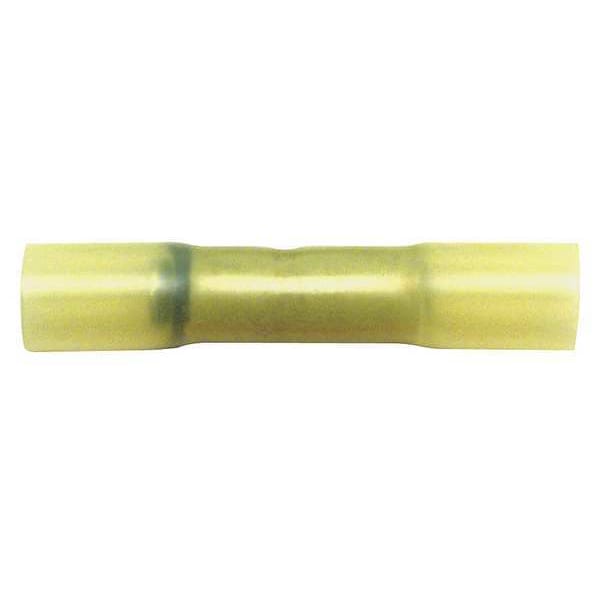

Butt Splice Wire Connector, 10 AWG Max, Yellow, Polyolefin Insulation, 600 V, 10 PK
Mfr # 35430
Zoro # G5366821
product price:Â $26.76
/pk 10, $2.68/eaKey Features
Type
Butt Splice
Color
Yellow
Minimum Wire Size
16 AWG
Insulation Material
Polyolefin
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 35430
- Zoro #
- G5366821
- UPC #
- 728974158946
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 10 AWG
- Minimum Wire Size
- 16 AWG
- Overall Length
- 1.68 in
- Barrel Inside Dia.
- 0.094 in 0.137 in
- Barrel Inside Diameter
- 0.094 in 0.137 in
- For Minimum Wire Size - Solid
- 16 AWG
- For Maximum Wire Size - Solid
- 10 AWG
- Wire Rope Length
- 1.68 in
Details
- Item
- Butt Splice Wire Connector
- Type
- Butt Splice
- Color
- Yellow
- Insulation Material
- Polyolefin
- Maximum Voltage
- 600 V
- Minimum Operating Temperature
- -67 Degrees F
- Maximum Operating Temperature
- 194 Degrees F
- RoHS Compliant
- Yes
- Standards
- UL Approved
- Material
- Copper
- Termination Style
- Crimp
- Special Features
- The Heat Shrink Tubing which is 3:1 Dual Wall Tubing with Adhesive Lining Provides a Waterproof Seal with Durable Abrasion Resistance
- Seam Style
- Brazed
- Insulation Color
- Yellow
- Contact Material
- Copper
Description
Butt Splice Connector, Connection Type Crimp, Insulation Material Heat Shrink, Insulation Color Yellow, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 10 AWG, Standards UL Approved, Termination Style Crimp, Contact Material Copper, Overall Length 1.68 in, RoHS Compliant Yes, Seam Style Brazed, Barrel Inside Diameter 0.094 in 0.137 in, Insulation Type Polyolefin, Minimum Operating Temperature -67 Degrees F, Package Quantity 10
