Ventboss By Robovent

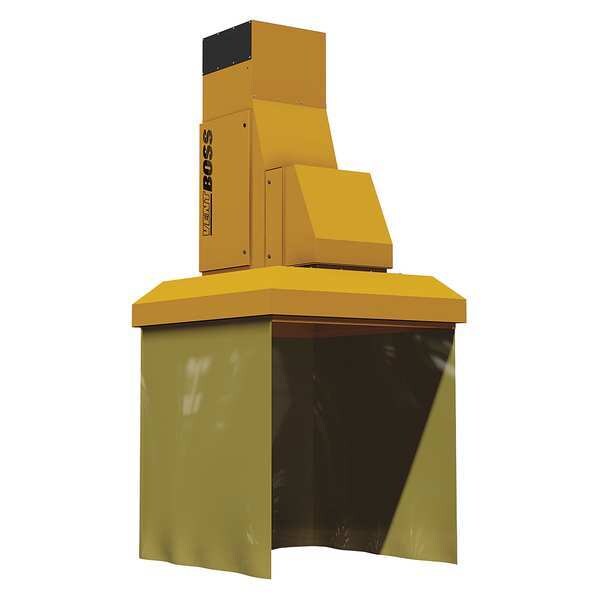

Overhead Filtration Unit, Manual, 1500 CFM

product price: $11,379.00
/ea
Item requires special delivery charges. A $250.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Air Flow (CFM) 1500
  • MERV 11
  • Input Voltage 480V AC
  • Hz 60
  • Includes Exhaust Silencer, Hanging Hardware Kit, Minihelic Filter Gauge
See all product information

Product Information

Dimensions

Width (In.) 60 in
Depth (In.) 48 in
Height (In.) 83 in
Housing Height 70 in
Housing Width 24 in
Housing Depth 25 in

Details

Item Overhead Filtration Unit
Air Flow (CFM) 1500
MERV 11
Input Voltage 480V AC
Hz 60
Includes Exhaust Silencer, Hanging Hardware Kit, Minihelic Filter Gauge
Series Series 300
Filter Media PolyDex, Washable
Sound Level dBA 73
Application Manual Welding
Features Acoustic Silencing, Canopy, Enclosing Curtain, Heavy Duty, High Performance Blower
Input (Amps) 15 A
Motor HP 2 hp
Current 3.4 A
Sound Level 72 dB
Maximum Air Flow 1,500 cfm
Motor Horsepower (Maximum) 2 hp
Frequency 60 Hz
Filter MERV Rating 15
Safety Features Built-In Spark Arrestance
Phase Three
Filter Type Reusable Cartridge Filter, Spark Arrestor
Process Grinding, Manual Welding
Housing Material Steel
Compatible Filter Manufacturer Part Number PL-14D36-A15-SF
Filter Area 320 sq ft

Description

Overhead Filtration Unit, Maximum Air Flow 1,500 cfm, Sound Level 72 dB, Filter Area 320 sq ft, Filter MERV Rating 15, Filter Type Reusable Cartridge Filter, Spark Arrestor, Input Voltage 480V AC, Motor Horsepower (Maximum) 2 hp, Series Series 300, Compatible Filter Manufacturer Part Number PL-14D36-A15-SF, Current 3.4 A, Features Acoustic Silencing, Canopy, Enclosing Curtain, Heavy Duty, High Performance Blower, Filter Media PolyDex, Washable, Frequency 60 Hz, Housing Depth 25 in
