  13. Current Switch 2.5-135A Adj. W/Rly, H-938

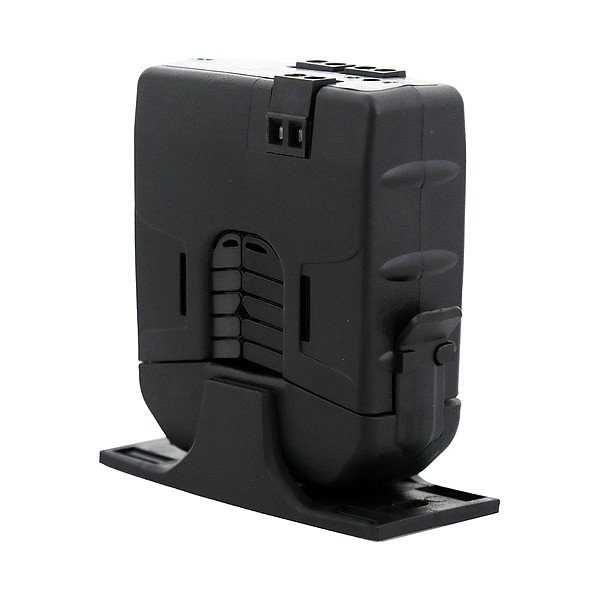

Veris Current Switch 2.5-135A Adj. W/Rly, H-938 H-938 - main

Current Switch 2.5-135A Adj. W/Rly, H-938

  • Mfr # H-938

  • Zoro # G9545897

product price: $83.99
/ea
Free Shipping & Returns

Key Features

Trip Point
2.5 to 135.0 A
Input Voltage
24V AC/DC
Contact Form
SPST-NO
Status Indicator
LED
Electrical Connection
Wire Leads
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
H-938
Zoro #
G9545897
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
3 in
Body Width
1.4 in
Body Depth
2.8 in
Body Height
3.1 in
Sensing Hole Diameter
19 mm

Details

Item
Current Switch 2.5-135A Adj. W/Rly,H-938
Trip Point
2.5 to 135.0 A
Input Voltage
24V AC/DC
Contact Form
SPST-NO
Status Indicator
LED
Electrical Connection
Wire Leads
Core Type
Split
Series
HX38
Trip Point Type
Adjustable
Standards
CE, UL Listed
Frequency
50/60 Hz
Adjustment Method
Switch
Contact Rating (DC)
10 A @ 30V, 5 A @ 30V
Mounting Style
Bracket
Minimum Operating Temperature
5 Degrees F
Operating Current
10 A @ 250 V AC (Resistive), 10 A @ 30 V DC (Resistive), 5 A @ 250 V AC (Inductive), 5 A @ 30 V DC (Inductive)
Maximum Operating Temperature
140 Degrees F
Contact Rating (AC)
10 A @ 250V, 5 A @ 250V
Wire Gauge
14 AWG, 24 AWG
Monitored Parameters
Undercurrent
Number of Pins
4
Current Rating
135 A

Description

Current Switch 2.5-135A Adj. W/Rly,H-938, Contact Form SPST-NO, Contact Rating (AC) 10 A @ 250V, 5 A @ 250V, Contact Rating (DC) 10 A @ 30V, 5 A @ 30V, Core Type Split, Current Rating 135 A, Input Voltage 24V AC/DC, Monitored Parameters Undercurrent, Mounting Style Bracket, Number of Pins 4, Trip Point 2.5 to 135.0 A, Trip Point Type Adjustable, Adjustment Method Switch, Electrical Connection Wire Leads, Sensing Hole Diameter 19 mm, Status Indicator LED, Wire Gauge 14 AWG, 24 AWG
