  13. Adj. Go Ring Gage, 1 1/4-12 UNF 2A

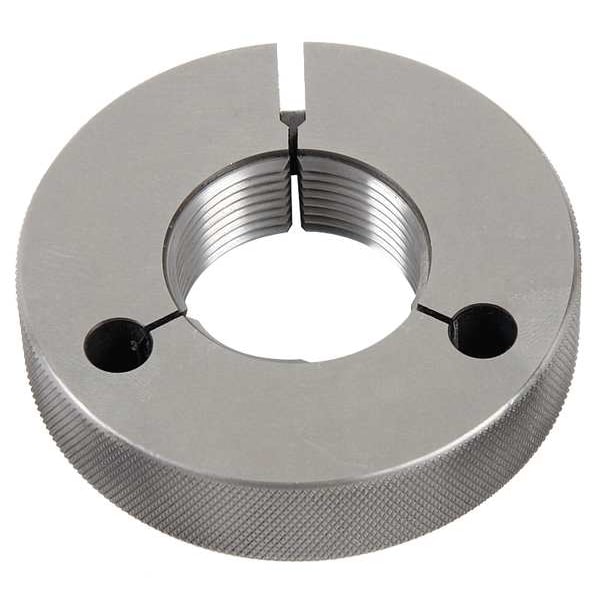

Vermont Gage Adj. Go Ring Gage, 1 1/4-12 UNF 2A 361176010 - main

Adj. Go Ring Gage, 1 1/4-12 UNF 2A

  • Mfr # 361176010

  • Zoro # G1036655

product price: $342.36
/ea
Free Shipping & Returns

Key Features

Type
Go
Class
2A
Thread Size
1 1/4"-12
Thread Type
UNF
Tolerance
Class X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
361176010
Zoro #
G1036655
UPC #
662631445218
Country of Origin
United States

Dimensions

Thread Size
1 1/4"-12
Outside Dia. (In.)
2 1/2 in
Overall Thickness (In.)
11/16 in
Thread Length (In.)
3/4 in
Pitch Diameter
1.1941 in
Pitch Diameter - Go Member
1.1941 in
Thread Length
3/4 in
Compatible Holder Size
6T
Dimension Type
Inch

Details

Item
Threaded Ring Gauge
Type
Go
Class
2A
Thread Type
UNF
Tolerance
Class X
Material
Tool Steel
Meets/Exceeds
ASME B1.2
Application
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Includes
Certificate of Accuracy Traceable to NIST
Finish
Uncoated
Long Form Calibration Certificate
No
Thread Class
2A
Hardness
RC 60-62
Tolerance Class
X
Included Certification
Certificate of Accuracy with NIST Traceability
Standards
ASME B1.2
Gauge Type
Go (Plus)
Gauge Design
Adjustable

Description

Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type Go (Plus), Pitch Diameter 1.1941 in, Pitch Diameter - Go Member 1.1941 in, Thread Class 2A, Thread Length 3/4 in, Thread Size 1 1/4 In.-12, Thread Type UNF, Compatible Holder Size 6T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
