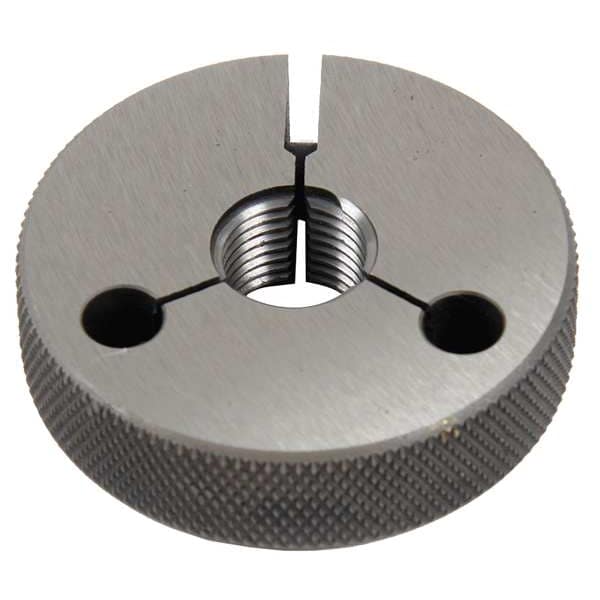

Adj. Go Ring Gage, M12.0-1.75 2A
Mfr # 362130510
Zoro # G1913283
product price: $169.99
/ea
Free Shipping & Returns
Key Features
Type
Go
Class
2A
Thread Size
M12 x 1.75
Thread Type
Metric
Application
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
362130510
Zoro #
G1913283
UPC #
662631473068
Country of Origin
United States
Dimensions
Thread Size
M12 x 1.75
Thread Length (In.)
9/16 in
Outside Dia. (In.)
1 3/4 in
Overall Thickness (In.)
7/16 in
Pitch Diameter
10.829 mm
Pitch Diameter - Go Member
14.994 mm
Dimension Type
Metric
Thread Length
11.1 mm
Compatible Holder Size
3T
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Metric, Gauge Type Go (Plus), Pitch Diameter 10.829 mm, Pitch Diameter - Go Member 14.994 mm, Thread Class 6G, Thread Length 11.1 mm, Thread Size M12 x 1.75, Thread Type Metric, Compatible Holder Size 3T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.16M, Tolerance Class X
