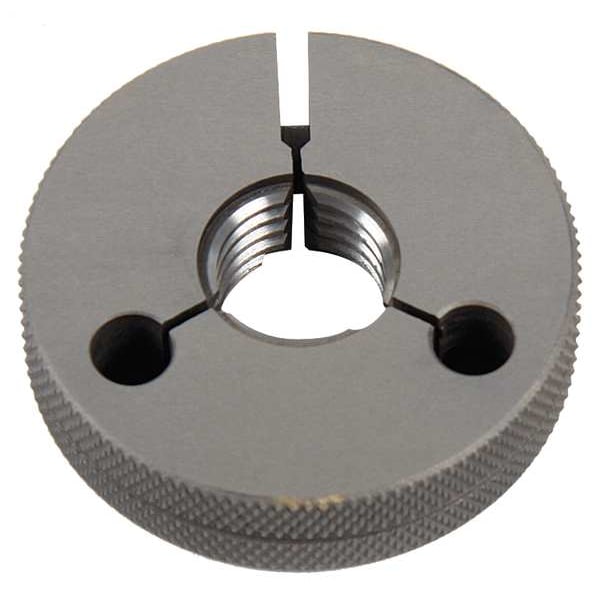

Adj. No Go Ring Gage, 5/8-11 UNC 2A
Mfr # 361147030
Zoro # G2481665
product price:Â
$
160.99
/ea
Free Shipping & Returns
Key Features
Type
No Go
Class
2A
Thread Size
5/8"-11
Thread Type
UNC
Application
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 361147030
- Zoro #
- G2481665
- UPC #
- 662631439439
- Country of Origin
- United States
Dimensions
- Thread Size
- 5/8"-11
- Outside Dia. (In.)
- 2 3/16 in
- Thread Length (In.)
- 9/16 in
- Overall Thickness (In.)
- 9/16 in
- Pitch Diameter - No-Go Member
- 0.5589 in
- Thread Length
- 9/16 in
- Dimension Type
- Inch
- Pitch Diameter
- 0.5589 in
- Compatible Holder Size
- 4T
- Pitch Diameter - No Go Member
- 0.5589 in
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.5589 in, Pitch Diameter - No-Go Member 0.5589 in, Thread Class 2A, Thread Length 9/16 in, Thread Size 5/8 In.-11, Thread Type UNC, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
