Shop VERMONT GAGE

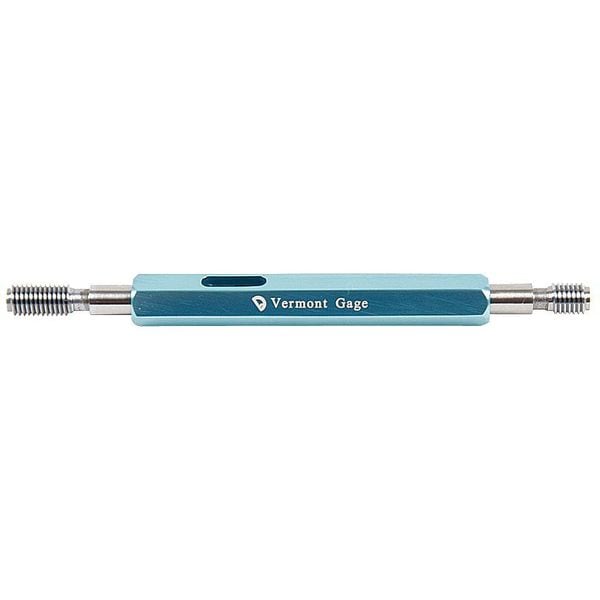

Go/No Go Plug Gage Assy, 1/4-20 UNC 2B

  • Mfr # 301126040
  • Zoro # G1778052
product price:
$
115.99
/ea
Free Shipping & Returns

Key Features

Type
Go/NoGo (Plus/Minus)
Class
2B
Material
Tool Steel
Finish
Chrome Plated 70/72 Rc
Overall Length
Go: 1/2"; NoGo: 5/16"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
301126040
Zoro #
G1778052
UPC #
662631305246
Country of Origin
United States

Dimensions

Overall Length
Go: 1/2"; NoGo: 5/16"
Thread Size
1/4"-20
Handle Length
2-3/4"
Gauge Length - No-Go Member
5/16 in
Dimension Type
Inch
Pitch Diameter - Go Member
0.2175 in
Pitch Diameter - No-Go Member
0.2224 in
Gauge Length - Go Member
1/2 in

Details

Item
Threaded Plug Gauge Assembly
Type
Go/NoGo (Plus/Minus)
Class
2B
Material
Tool Steel
Finish
Chrome Plated 70/72 Rc
Thread Type
UNC
Tolerance
Class X
Includes
Certificate of Accuracy with NIST Traceable
Meets/Exceeds
ANSI B1.2
Application
For Calibration of Measuring Equipment or to Gage Parts Directly
Gauge Type
Go/No-Go (Plus/Minus)
Thread Direction
Right Hand
Gauge Finish
Chrome Plated
Tolerance Class
X
Thread Class
2B
Included Handle
Taperlock 1
Included Certification
Certificate of Accuracy with NIST Traceability
Hardness
RC 70-72
Handle Color
Light Blue
Standards
ASME B1.2
Gauge Material
Tool Steel
Handle Design
Double End
Long Form Calibration Certificate
No
Shell Material
Tool Steel

Description

The VERMONT GAGE 301126040 Go/No Go Plug Gage Assy is an essential tool for calibration of measuring equipment or to gage parts directly. The chrome plated plug gauge has a 70/72 Rc finish. It features a plus/minus go and no-go design, with the overall length being 1/2" and 5/16" respectively. Made of tool steel, the tool also has a 2B class and 1/4"-20 thread size. Plus, it comes in a NoGo configuration with a UNC thread type. This VERMONT GAGE Plus Minus Plug Gauge Assembly is the perfect tool for all your gaging needs.
